Deva Broadcast DB9009-TX – Audio over IP Encoder

Overview

The Deva Broadcast DB9009-TX is a second-generation, multi-protocol Audio over IP encoder engineered for professional broadcasting, STL, and streaming applications. With advanced real-time compression using HE-AAC (v1/v2), MPEG-1 Layer 3, or raw PCM, the DB9009-TX guarantees low-latency, high-fidelity networked audio.

Its DSP architecture supports both analog (XLR, balanced) and digital AES/EBU audio inputs. The unit is equipped with a clear OLED display, intuitive front panel with 5 LED indicators, and comprehensive HTML5 remote configuration. Up to 10 simultaneous IP streaming clients can connect, and uncompressed PCM streaming assures no-signal loss links.

With robust build quality, and support for broadcast protocols including Icecast and SHOUTcast, as well as Ethernet to RS-232 redirector mode, the DB9009-TX integrates seamlessly into any modern radio or studio network.

Key Features

• Support for HE-AAC (v1/v2), MPEG Layer 3, and raw PCM
• 32, 44.1, and 48 kHz sample rates; up to 3072 kbps for PCM
• Dual analog XLR (balanced) and AES/EBU digital audio inputs

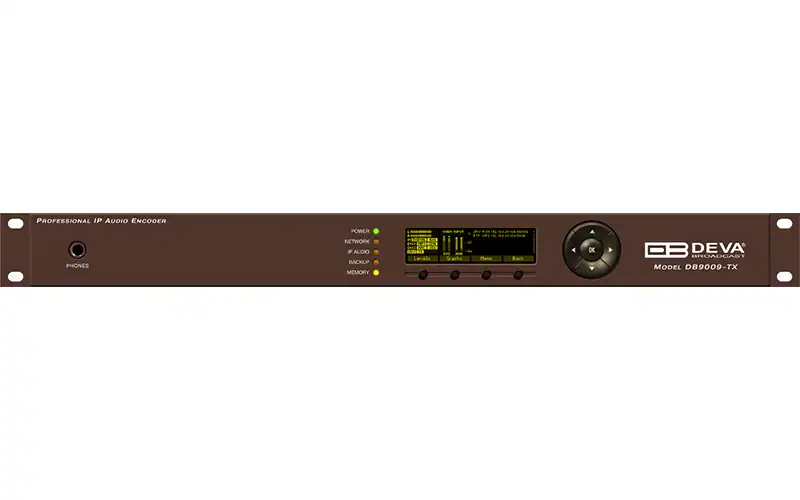

• Front panel OLED display with status LEDs
• Up to 10 concurrent IP streaming clients
• Icecast/SHOUTcast server compatibility, UPnP network discovery

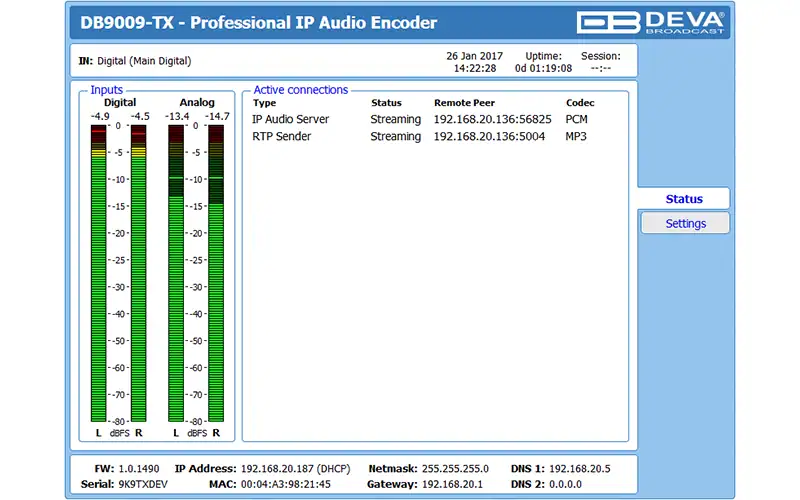

• Remote management via HTML5 web interface and SNMP
• Ethernet to RS-232 redirector for flexible system integration

Technical Specifications

• Audio Codecs: HE-AAC (v1/v2), MPEG-1 Layer 3, raw PCM
• Sample Rates: 32, 44.1, 48 kHz (PCM up to 3072 kbps)

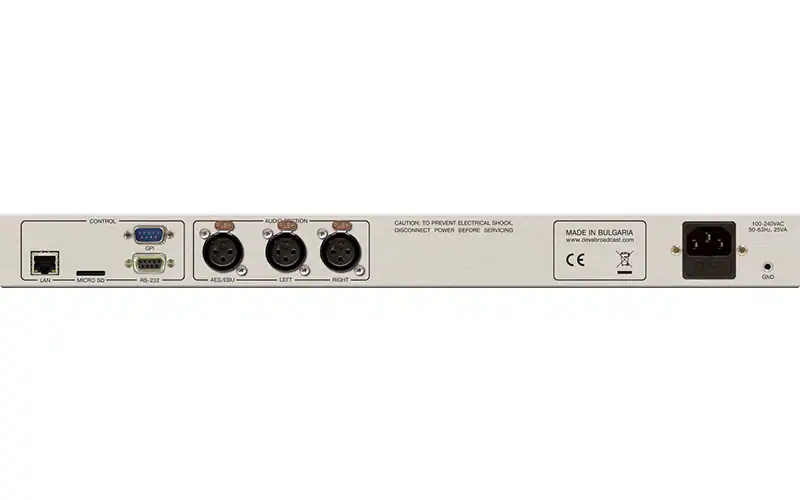

• Audio Inputs: 2x XLR (analog, balanced), XLR AES/EBU
• Emphasis: 50µs, CCITT J.17, or none (user-selectable)
• User Interface: OLED display, 5 LEDs, web interface
• Power: IEC320, 100–240V 50/60Hz, 25W
• Size: 485
