Overview
The Professional DEVA DB9000-TX IP audio encoder is purpose-built for fast, secure audio delivery over IP networks. With real-time HE-AAC, MPEG-1 Layer 3, or uncompressed PCM encoding, the DB9000-TX offers reliable, high-fidelity streaming for broadcasters and content providers.
Analog and AES/EBU digital inputs make integration easy. Its remote web interface, RS-232 redirector, and TCP/IP flexibility ensure simple management and streamlined deployment for studio-to-transmitter links or internet radio streams.
Key Features
- Supports HE-AAC (v1/v2), MPEG-1 Layer 3, and PCM encoding
- Analog XLR (balanced) and AES/EBU digital audio inputs
- Real-time signal compression and up to 10 simultaneous client streams
- Shoutcast/Icecast server and RTP sender compatibility

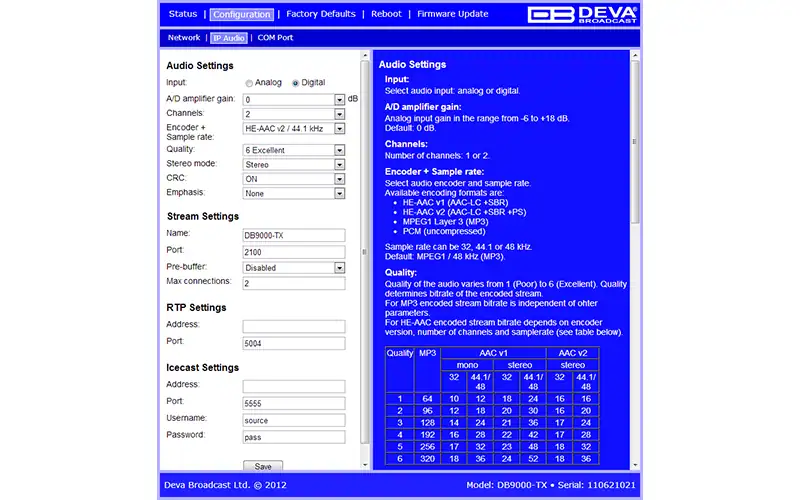

- Remote management through HTML5 web UI and RS-232 redirector
- Internal sample rate converter for audio quality assurance
- UPnP and DHCP for quick network integration
Technical Specifications
- Audio codecs: HE-AAC (v1/v2), MPEG-1 Layer 3, PCM
- Sample rates: 32, 44.1, 48 kHz; up to 3072 kbps (PCM), 320 kbps (MP3)

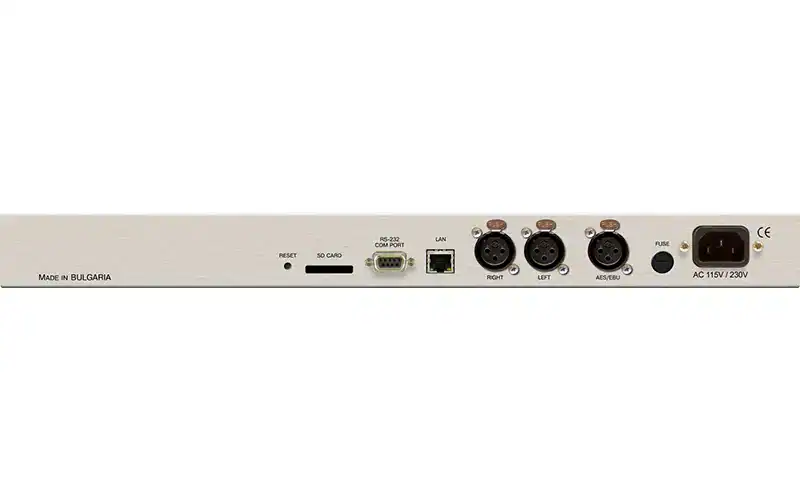

- Inputs: 2 x XLR (analog, balanced), XLR AES/EBU digital
- Dynamic range: >100 dB; Emphasis: 50µs, CCITT J.17, or none
- Network: 1x Ethernet (RJ-45), UPnP enabled; RS-232 for device control
- Power: 115/230V AC, internal switch; consumption 5 VA
- Dimensions: 485 x 44 x 180 mm; weight: ~2.5 kg
Applications
The DEVA DB9000-TX is optimized for STL, internet radio, live event streaming, and multi-platform broadcast studios requiring robust IP audio encoding.
Setup & Integration
Connect your source using XLR or AES/EBU digital input. Configure streaming and remote access using the web UI. UPnP and DHCP make installation fast, while RS-232 redirection allows legacy integration.
FAQs — DEVA DB9000-TX
- Q: What audio codecs are supported?
A: HE-AAC (v1/v2), MPEG-1 Layer 3, and uncompressed PCM.
- Q: Can it act as a Shoutcast/Icecast server?
A: Yes, as a compatible server, source client, or RTP sender for multi-platform applications.
- Q: How many clients can connect simultaneously?
A: Up to 10 remote IP streaming clients can connect to a single encoder.
