Overview
The DEVA DB9000-RX – Professional IP Audio Decoder, Stereo & RDS delivers reliable, high-quality audio decoding for FM, digital, or internet radio broadcasters. Supporting HE-AAC (v1/v2), MPEG-1 Layer 3, and PCM streams, it ensures crisp sound via analog or digital outputs and integrates an optional DSP stereo encoder and dynamic RDS.
Equipped for rapid installation and remote management, the DB9000-RX includes a Web GUI, built-in backup audio player, seamless failover, and MPX/RDS output with full DSP processing. It is ideal for main program links, backup feeds, or automated rebroadcast.
Key Features
- Supports HE-AAC (v1/v2), MPEG-1 Layer 3, PCM, and all major bit rates
- Optional DSP-based stereo encoder with digital MPX and AGC
- Dynamic RDS encoder for PI, PS, RT, PTY, PTYN and more (option)
- Automated audio backup with SD card/FTP, auto-failover between streams
- Shoutcast/Icecast TCP/IP client, low-latency RTP and VoIP support

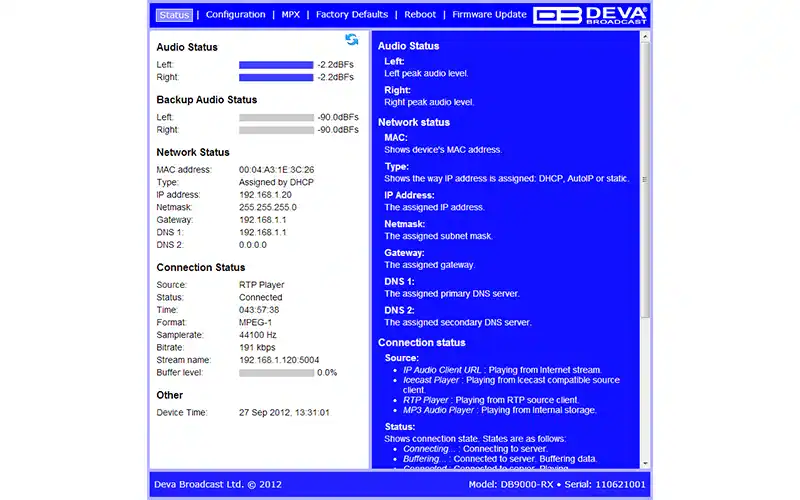

- Remote or browser-based full configuration and monitoring
- Analog balanced XLR and AES/EBU digital outputs, 6.3 mm phones jack
- Ethernet to RS-232 redirector, easy network integration via UPnP
Technical Specifications
- Audio codecs: HE-AAC (v1/v2), MPEG-1 Layer 3, PCM
- Sample rates: 32, 44.1, 48 kHz; analog out dynamic range ≥100 dB

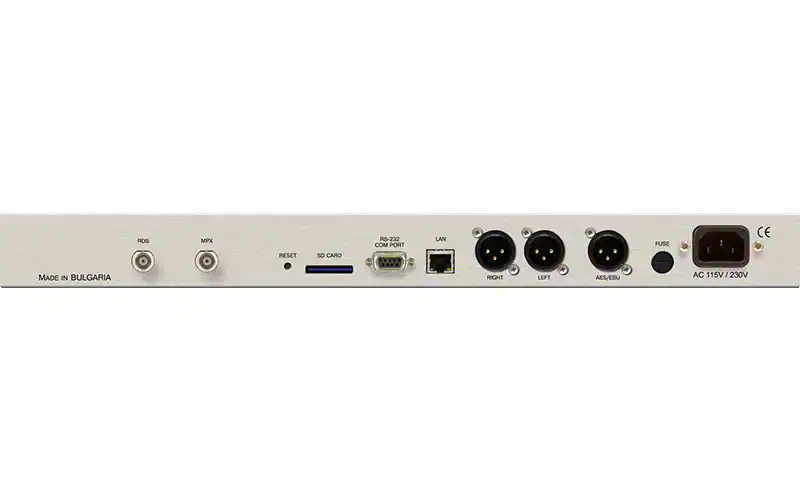

- Outputs: 2x XLR (analog), 1x XLR (AES/EBU), phone jack, BNC composite (MPX)
- Network: Ethernet RJ-45; UPnP; RS-232
- Auto-backup: SD card (up to 2GB), supported MP3, AAC, M4A
- Power: 115/230V AC, 18VA
- Dimensions: 485 x 44 x 180 mm; Weight: 2.6 kg
Applications
The DB9000-RX is ideal for FM/DAB+ transmitter sites, IP radio rebroadcast, network monitoring, and main/backup audio-over-IP feeds. Programmers use its RDS and MPX outputs for seamless integration into any modern broadcast chain.
Setup & Integration
Connect to your network and audio plant, configure via Web GUI, and manage failover sources. Full SNMP monitoring, browser access, and remote updates simplify ongoing operations.
FAQs — DEVA DB9000-RX
- Q: Can the optional RDS encoder be managed remotely?
A: Yes, configure all RDS fields and automation via the web UI.
- Q: What happens if the main audio stream fails?
A: The DB9000-RX automatically switches to backup IP sources, then to onboard SD audio file playback as needed.
- Q: Is this unit compatible with legacy and IP radio systems?
A: Yes, it supports both analog/digital outputs and multiple IP audio formats.
