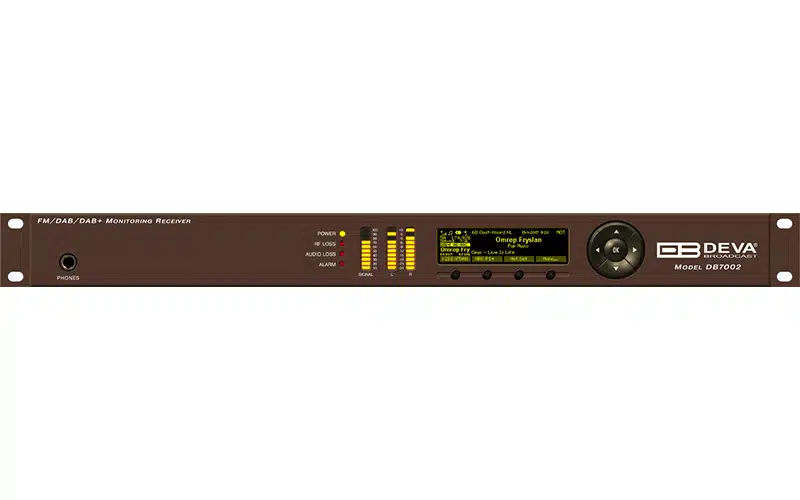

The DEVA DB7002 is a professional FM/DAB/DAB+ monitoring receiver featuring IP audio streaming, advanced signal analytics, and full remote control.
Original price was: $ 3,407.65.$ 3,297.91Current price is: $ 3,297.91.
The DEVA DB7002 is a professional-grade FM/DAB/DAB+ monitoring receiver designed to meet the most demanding requirements of broadcast engineers and network operators. With multi-standard signal support, precision measurement tools, and integrated IP streaming, the DB7002 provides complete off-air confidence monitoring for modern radio networks.
Developed by DEVA Broadcast, a global leader in broadcast signal analysis and quality assurance, the DB7002 combines high reliability with comprehensive functionality. It allows simultaneous reception and decoding of both FM and DAB/DAB+ signals, providing real-time audio streaming and data metrics via its integrated web interface.

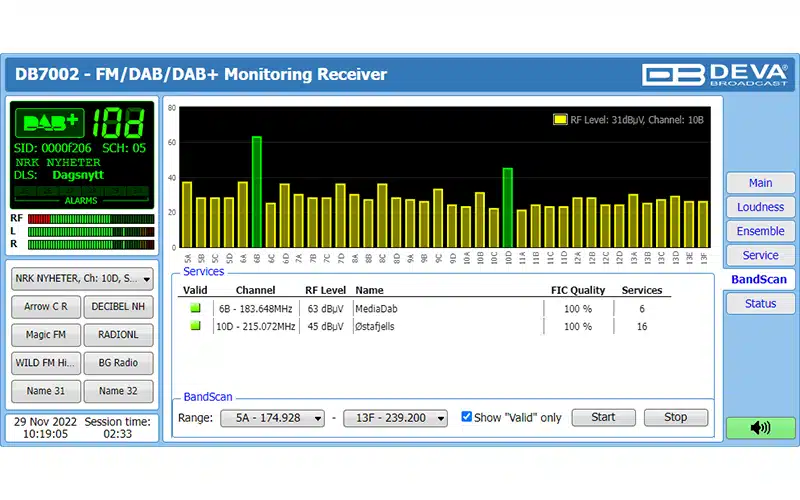

Its internal DSP engine ensures accurate signal demodulation and error analysis, while the intuitive graphical interface displays signal parameters, audio levels, BER, and SNR in real time. For network operations centers and field engineers alike, the DB7002 offers remote accessibility through SNMP, TCP/IP, and email alarms, ensuring rapid fault detection and response.
The unit also supports IP audio streaming in multiple formats, allowing continuous off-air audio confidence monitoring from any connected location. With redundant power supply options and a fanless, energy-efficient design, the DB7002 is built for 24/7 mission-critical operation.
Key Features
Multi-standard FM/DAB/DAB+ signal reception
IP audio streaming with configurable quality settings
Real-time signal analytics and logging
Web-based control and SNMP remote monitoring
Email and SMS alarms for signal failure or quality degradation
Fanless, energy-efficient design for 24/7 reliability
Audio and RF measurement tools with high precision
Compact 1U rackmount form factor
Technical Specifications
Frequency Range (FM): 87.5 – 108 MHz
Frequency Range (DAB/DAB+): 174 – 240 MHz

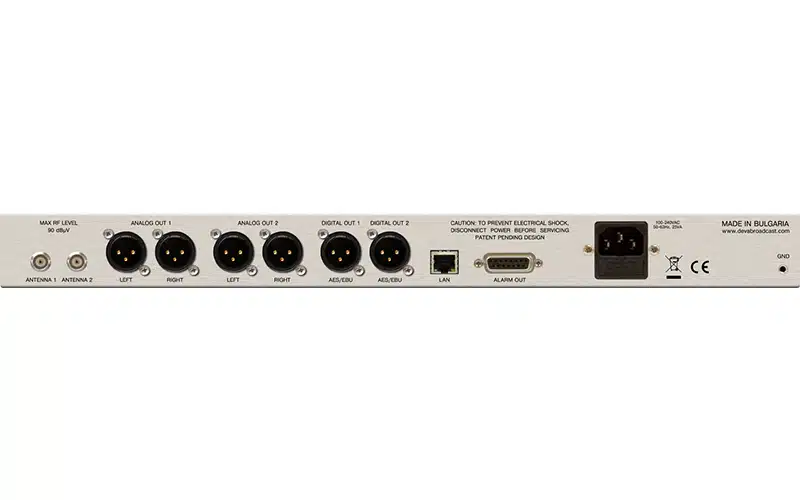

Audio Outputs: Analog, AES/EBU, and IP stream
Stream Formats: MPEG-1 Layer II, AAC-LC, PCM
Interfaces: Ethernet RJ45, USB service port
Power: 100 – 240 V AC or 12 V DC
Dimensions: 1U rackmount, 483 × 44 × 250 mm
Weight: ≈ 2.1 kg
