DEVA DB7001 – FM Radio Re-Broadcast Receiver

The DEVA DB7001 is a professional FM re-broadcast receiver offering DSP-based signal demodulation, stable 24/7 performance, and remote IP monitoring for broadcast networks.

DEVA DB7001 – FM Radio Re-Broadcast Receiver

The DEVA DB7001 is a compact, professional-grade FM re-broadcast receiver designed for continuous 24/7 operation in demanding broadcast environments. Built with DEVA’s advanced DSP technology, it ensures clean demodulation, high selectivity, and stable signal relay — even under challenging RF conditions.

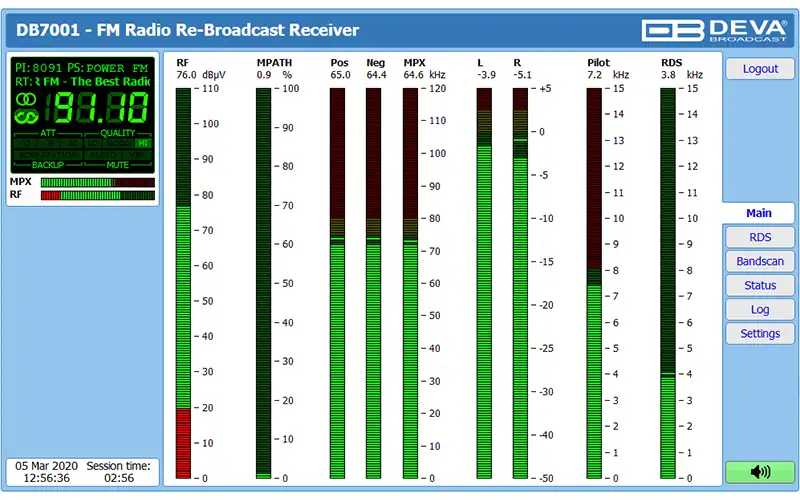

Engineered for precision and reliability, the DB7001 integrates a high-sensitivity FM tuner with analog and AES/EBU digital outputs, allowing seamless signal retransmission and monitoring. The intuitive web interface enables engineers to remotely adjust parameters, monitor performance, and configure alarms for signal interruptions or quality degradation.

Compact and efficient, this receiver is ideal for network operators, translators, and relay sites that require dependable FM-to-FM rebroadcasting with minimal latency and consistent audio quality.

Key Features:

  • High-sensitivity FM tuner with DSP-based demodulation
  • Web-based IP control and monitoring
  • Adjustable IF bandwidth and pilot suppression
  • Analog and AES/EBU digital audio outputs
  • SNMP, email, and relay alarm notifications
  • 1U rack-mountable compact design
  • Designed for 24/7 professional broadcast operation

Technical Specifications:

  • Frequency Range: 87.5 – 108 MHz
  • Outputs: Analog (XLR), AES/EBU digital
  • Ethernet: 100Base-T for IP control
  • Power Supply: 100–240V AC, 50/60Hz
  • Dimensions: 1U rackmount (19″)
  • Weight: Approx. 3.5 kg

Use Cases:

  • FM translator and relay stations
  • Network rebroadcast monitoring
  • Off-air signal verification
  • Broadcast backup and redundancy systems
