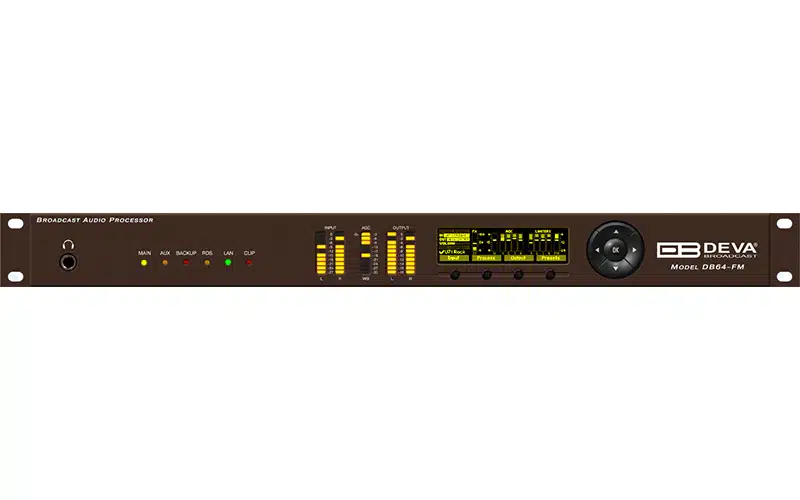

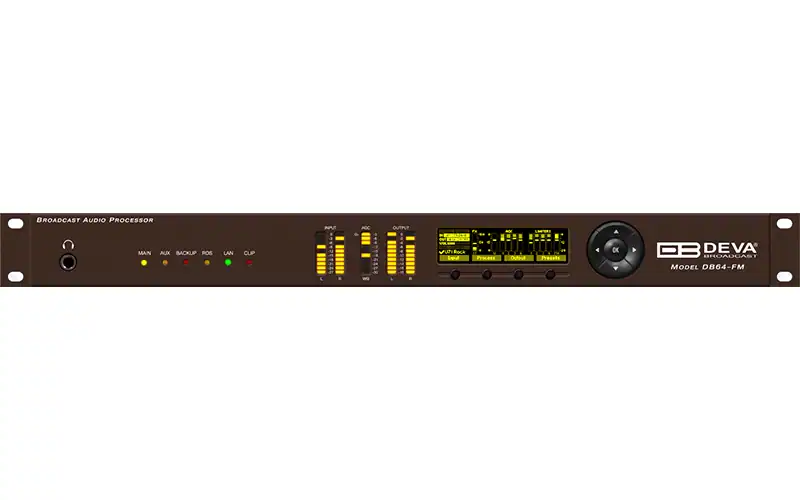

DEVA DB64-FM – Audio Processor with RDS/RBDS Encoder

Overview

The DEVA DB64-FM is a powerful 4-band broadcast audio processor built for FM and HD radio stations. Its advanced DSP core ensures ultra-low latency and delivers precise dynamic control for professional broadcast environments.

Integrated RDS/RBDS encoding provides robust station identification and data transmission, allowing broadcasters to deliver reliable audio and real-time metadata to listeners. Dual independent MPX outputs offer flexible routing options for studios and transmitter networks.

With remote management via web and SNMP, plus rackmount-ready design and multiple preset profiles, the DEVA DB64-FM audio processor supports both live and automated radio workflows.

Key Features of DEVA DB64-FM

• Ultra-low latency DSP processing for clear, dynamic sound
• 4-band parametric EQ with precise tonal control
• AGC with intelligent gating and multi-band limiter with FM distortion management
• HD lookahead limiting for optimal signal performance
• Integrated RDS/RBDS encoder supporting station info and song metadata
• Dual composite MPX outputs, AES/EBU digital I/O
• Remote web and SNMP configuration, plus front-panel controls

Technical Specifications

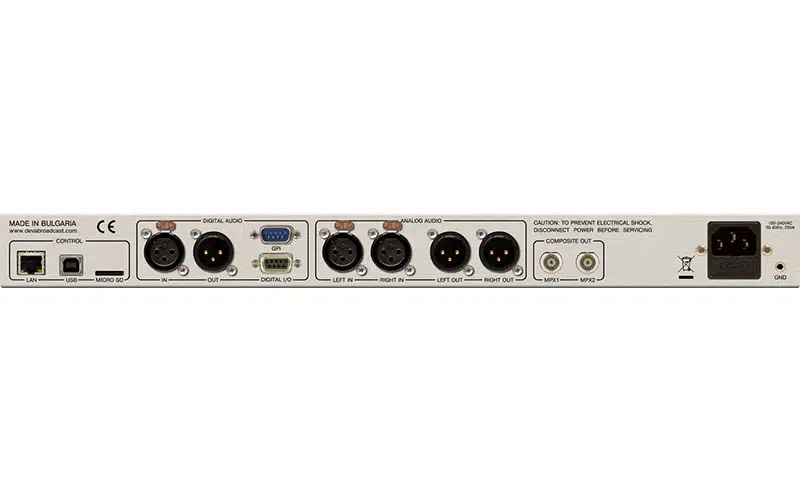

• Analog Inputs/Outputs: Stereo XLR, EMI-suppressed
• Digital Audio: AES/EBU, 24-bit, up to 192 kHz
• MPX Output: Two independently configurable composite outputs
• A/D and D/A Conversion: 24-bit at 48/192 kHz
• Processing modules: AGC, parametric EQ, HPF/Limiter, HD lookahead

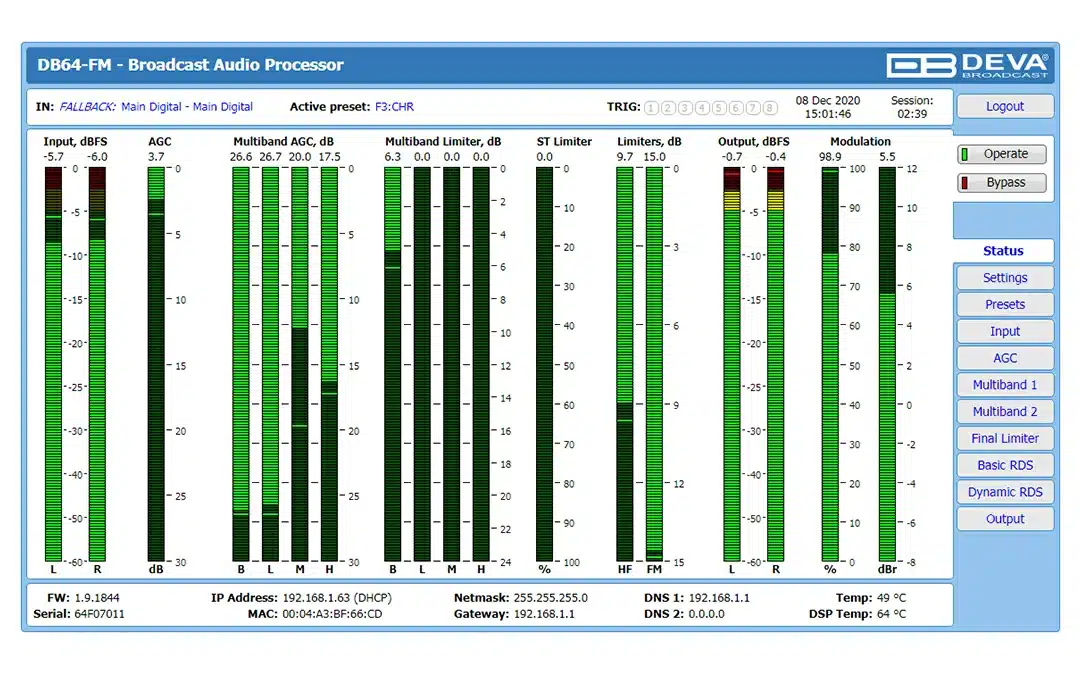

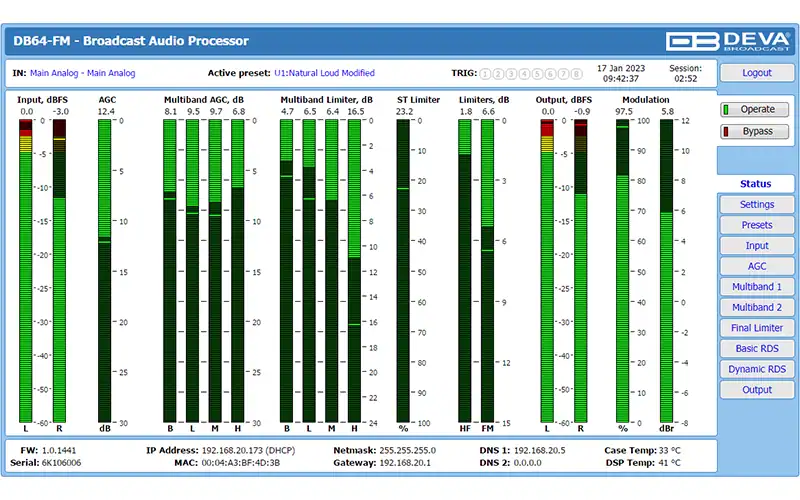

• Remote Management: Web server, SNMP agent

Applications

The DEVA DB64-FM is ideal for regional FM stations, HD digital overlays, and studio installations needing compact, reliable processing with advanced RDS data. Easy integration and remote management make it a top choice for scalable radio operations.

Setup & Integration

Mount the DEVA DB64-FM in a standard rack, connect analog and digital feeds, and select preset or user profiles. Remote control over web and SNMP streamlines integration with mainstream broadcast chains.

FAQs — DEVA DB64-FM Audio Processor

• Q: What inputs does the DEVA DB64-FM support?A: Stereo analog XLR and AES/EBU digital I/O.
• Q: Can I manage the processor remotely?A: Yes, via built-in web server, SNMP, and front-panel controls.
• Q: Does it have dual MPX outputs?A: Yes, both composite outputs are independently configurable.
• Q: What signal processing modules are included?A: AGC, parametric EQ, limiter, HD lookahead, RDS/RBDS encoder.
