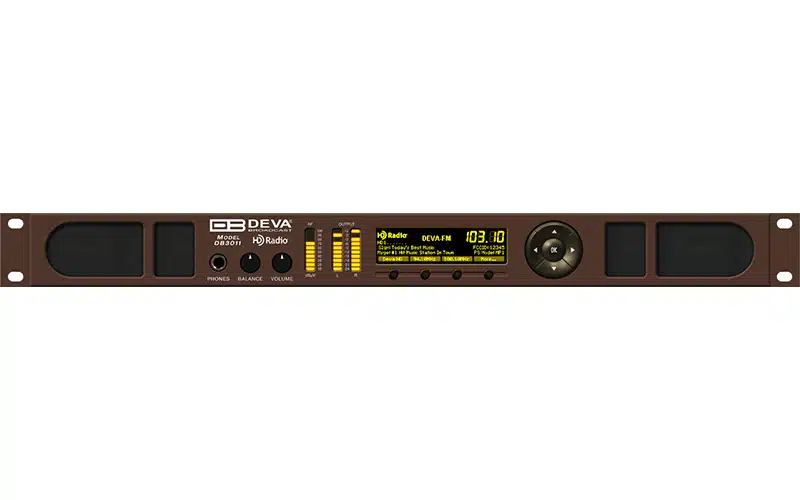

deva db3011 fm hd radio ip audio monitoring receiver front panel
deva db3011 fm hd radio ip audio monitoring receiver rear panel

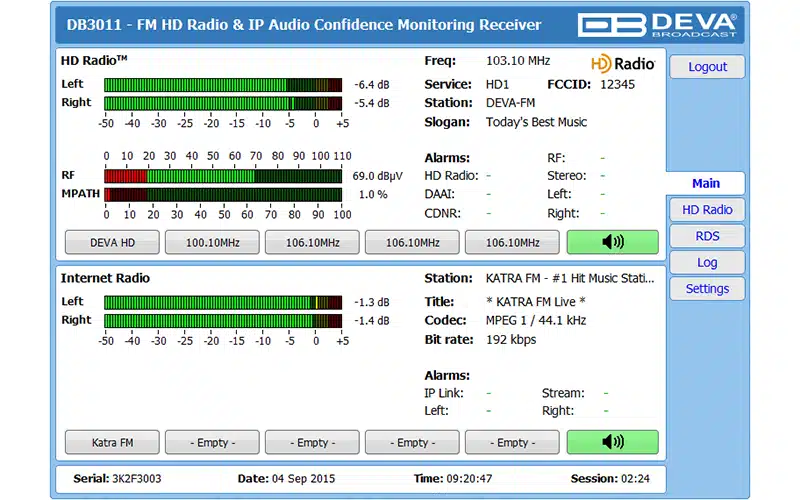

deva db3011 web interface fm hd radio monitoring software

DEVA DB3011 – FM/HD Radio & IP Audio Monitoring Receiver

$ 2,057.57 $ 2,132.50

The DEVA DB3011 is a professional FM/HD Radio and IP audio receiver providing reliable signal analysis, IP stream supervision, and real-time remote monitoring.

SKU: 102204 Categories: , , Brand:DEVA Broadcast

Description

The DEVA DB3011 – FM/HD Radio & IP Audio Monitoring Receiver is a professional-grade solution designed for continuous off-air supervision of FM, HD Radio, and IP audio streams. Built for demanding broadcast environments, it provides accurate signal analysis, IP stream verification, and reliable alarm notifications to ensure your station remains on-air and compliant at all times.

Overview

The DEVA DB3011 combines advanced DSP-based signal processing with a dual-tuner architecture, allowing simultaneous FM and HD Radio reception. Real-time monitoring delivers precise measurements of RF level, deviation, SNR, pilot tone, and RDS/HD metadata. Its integrated web interface provides engineers with full access to configuration, live audio, and performance statistics from any connected device.

For IP applications, the DB3011 supports multiple streaming protocols including UDP, RTP, and HTTP, ensuring flexible integration across studio and transmitter networks. It continuously monitors stream integrity and can issue automatic alerts via email or SNMP in case of signal loss or quality degradation. Designed for durability, the compact 1U rackmount chassis and redundant power supply make it suitable for mission-critical installations.

Key Features

  • Dual FM/HD Radio tuners for simultaneous signal monitoring
  • Integrated IP audio stream supervision with alarm reporting
  • Web interface for remote access, audio streaming, and configuration
  • Email and SNMP alerts for signal faults or loss of audio
  • RDS and HD Radio metadata decoding
  • Compact 1U rackmount design with redundant power inputs
  • Ideal for studios, transmitter sites, and network operations centers

Technical Specifications

  • Tuning Range: 87.5–108 MHz FM band, HD Radio compatible
  • Audio Outputs: Analog, Digital AES/EBU, and IP Stream
  • Stream Formats: MPEG-1 Layer II, AAC-LC, or PCM
  • Connectivity: Ethernet RJ45 (100Base-T), USB service port
  • Power: 100–240V AC or 12V DC (redundant inputs)
  • Form Factor: 1U Rackmount; Weight: approx. 2.5 kg

Why Choose the DEVA DB3011

Engineered for precision, the DEVA DB3011 gives broadcasters and network operators confidence through accurate monitoring, flexible IP support, and real-time alerting. With its dual FM/HD tuners, detailed analytics, and robust build quality, it is the perfect solution for hybrid radio environments demanding stability and performance.

Additional information

Weight4 kg
Dimensions54 × 45 × 12.5 cm
Color

Black

Product can be split into multiple boxes

0

Ship Separately

0

features

RDS and RBDS decoder with BER meter Wide angle, easy to read OLED display Very Intuitive Navigational Menu Quick Station access via 4 Presets Real Time Audio Program Streaming Full fidelity radio program monitoring in only 1RU Built-in WEB and FTP server Easy to use WEB interface Apple and Android devices support Protected access to the device settings Wide operating voltage range: 100-240V AC Bright bar graph LED metering of the RF and Audio Levels Headphone output with front panel level control Advanced Internet Radio Monitoring Capabilities Automatically decodes AAC, AAC+, MP3, RTP and PCM IP Audio Support of all standard bitrates and VBR as well SHOUTcast / ICEcast compatible Automatically displays live metadata for all standards Adjustable alarms for Stream Loss and Internet Loss DSP controlled, high efficient class-D switching amplifier Accurate 3-way speaker system Two mid/high frequency speakers for excellent stereo imaging. Active crossover for perfect separation between mid-range and bass bands Magnetically shielded drivers that allows placement next to video monitors SNTP for automatic synchronization of the built-in clock Level Adjustable, Balanced Analog Audio Outputs on XLR Connectors Professional AES/EBU Digital audio output LAN port for full TCP/IP remote control and monitoring Adjustable MIN/MAX alarms for RF, Left & Right Audio Levels Alarm dispatch via E-mail, SNMP ver.2C and GPO Firmware updates will ensure improved operation Multi-point screw fixings ensured 19" aluminum case

specification

IP Audio Player Decoder/Supported formats MPEG-1 Layer 3, HE-AAC (v.1 and v.2) and raw PCM Sample rates 32, 44.1 and 48 kHz Bit rates All standard bit rates, including VBR Metadata decoder Station/Streamer’s ID, Song/Title, Stream Properties and Quality Stream client Shoutcast/Icecast compatible TCP/IP client FM/HD Radio Tuner Tuning Range 76 to 108.1 MHz, Frequency Agile Tuning Step 100 kHz Tuner Sensitivity ≤ 10µV for 50dB monaural FM S/N Antenna Port BNC Connectors, 50Ω Internal Attenuator 0, 10, 20 and 30 dB Dynamic range 100 dB FM Demod IF Filter Bandwindth Adjustable from 27kHz to 157kHz Frequency Response ±0.1 dB, 10 Hz to 86 kHz Dynamic range 90 dB Stereo Decoder Frequency Response (L and R) FM: 30Hz – 15kHz, HD Radio: 20 Hz to 20kHz ±0.1 dB SNR (Stereo) 60 dB, 50 µs de-emphasis THD 0.1%, 10 Hz to 15 kHz, 50 µs de-emphasis Stereo Separation 50 dB, 50 Hz to 10 kHz, 50 µs de-emphasis HD-Rada PAD Data Name, Type, Long Name, Artist, Title RDS Decoder Standards European RDS CENELEC; United States RBDS NRSC Error Correction & Counting Yes Decoder PI, PS, PTY, AF, RT, RT+, DI, MS, TA, TP, CT, TMC, ODA Group Analyzer Yes BER Analyzer Yes Group Sequence Display Yes RDS RAW Data Display Yes Metering Accuracy RF Level 1%, 0 to 100 dBµV, 1dB resolution Audio 1%, +10.0 to -55.0 dB, 0.1 dB resolution c Amplifier & Loudspeakers Configuration Three-way with stereo mid/ high-frequency drivers & mono low-frequency driver Power Output 2 x 6W (HF) + 12W (LF) with protective limiter Crossover 250Hz, 24dB/octave, Linkwitz-Riley Distortion, HF Outputs < 0.1% – 1kHz, 3W output (below limit threshold) Distortion, LF Output < 0.05% – 100Hz, 6W output (below limit threshold) Noise Better than -72 dB below full output Volume Control Mute to Full, Front panel, Rotary type Balance Trim ±6dB, Front panel, Rotary type Peak Acoustic Level 98dB SPL @ 2ft Outputs Analog Audio Outputs (L, R) +12 dBm, 600Ω, balanced XLR Connector AES/EBU Output (L, R) 5.0 Vp-p, 110Ω, balanced XLR Connector Alarms Programmable terminals on rear panel, Optoisolated Headphone 6, 3mm (1/4") Phone Jack Network Connector RJ-45 Type Ethernet Device discovery UPnP support Measurements and Log Storage Storage 2GB Build-in Memory Card Data format Text, CSV Power Supply Voltage 100-240V / 50-60 Hz / 25W Connector IEC320 Size and Weight Dimensions (W;H;D) 485 x 44 x 300 mm Shipping Weight 540 x 115 x 300 mm / 4.5kg

video

0
