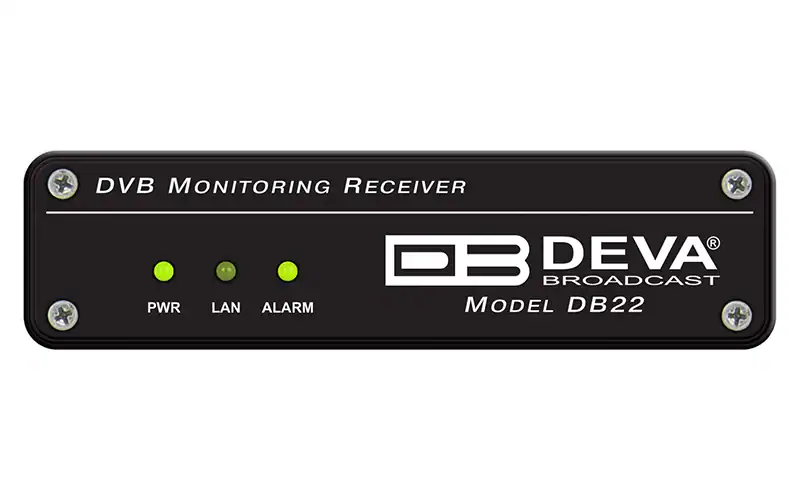

The DEVA DB22 is a compact DVB-T/T2/S/S2/C monitoring probe offering accurate signal analysis and remote alarm management for broadcast applications.
$ 2,293.79
The DEVA DB22 is a compact DVB-T/T2/S/S2/C monitoring probe designed for professional broadcasters and regulatory authorities needing continuous signal analysis and transport-stream supervision. Combining DEVA’s engineering reliability with cost-effective efficiency, the DB22 ensures accurate measurement of all key DVB parameters in a small, energy-efficient form factor.
The device uses DEVA’s latest DSP-based architecture to deliver precise measurements of MER, BER, SNR and signal power while offering constellation and transport-stream visualization through its intuitive web interface. Users can remotely control the unit via Ethernet to monitor signal integrity and receive instant alarm notifications via email or SNMP.
Engineered for round-the-clock operation, the DB22 combines low power consumption with fanless cooling, making it suitable for studio, transmitter and NOC environments. Its compact 1U rackmount design makes deployment simple even in space-limited installations. For organizations requiring essential DVB monitoring without the cost of advanced analyzers, the DB22 delivers dependable performance and high-value functionality.
Key Features
Multi-standard DVB-T/T2/S/S2/C monitoring capability
MER, BER, SNR and constellation measurement
Integrated web interface with real-time stream data
SNMP and email alarm notifications
Fanless, energy-efficient design for silent operation
24/7 reliability for broadcast monitoring sites
Compact 1U form factor for easy installation
Cost-effective alternative to advanced probes
Technical Specifications
Supported Standards: DVB-T/T2, DVB-S/S2, DVB-C
Frequency Range: 50 MHz – 2.4 GHz (mode dependent)
Interfaces: RF input, Ethernet RJ45, USB service port
Alarm Triggers: Signal loss, stream errors, threshold alerts
Measurements: MER, BER, SNR, constellation, signal power
Power: 100–240 V AC or 12 V DC
Dimensions: 483 × 44 × 250 mm (1U)
Weight: ≈ 1.8 kg
