The DEVA DB2002 is a powerful yet affordable DVB-T/T2/S/S2/C monitoring probe offering accurate signal measurement, transport-stream supervision, and remote alarms.
$ 3,117.19
The DEVA DB2002 is a basic yet powerful DVB-T/T2/S/S2/C monitoring probe designed for continuous signal supervision and transport-stream analysis across all major DVB standards. Engineered for cost-effective broadcast monitoring, the DB2002 ensures accurate measurement, real-time data visibility, and reliable alarm notifications in a compact and efficient design.
Using DEVA’s advanced digital signal processing architecture, the DB2002 measures critical DVB parameters such as MER, BER, SNR, and constellation. It allows broadcasters and network operators to monitor the integrity of DVB transport streams, ensuring proper modulation and transmission quality.
The intuitive web interface provides remote access to live signal data and status indicators, enabling easy setup and quick diagnostics. With SNMP and email alerts, the DB2002 automatically reports any deviation from nominal signal conditions, helping engineers maintain uninterrupted service delivery.
Designed for round-the-clock operation, the unit’s low power consumption, robust construction, and fanless design make it ideal for installation in transmitter sites or network control centers. Whether used as a standalone monitoring solution or integrated within a larger DVB infrastructure, the DB2002 delivers dependable and efficient performance.
Key Features
DVB-T/T2/S/S2/C monitoring and analysis
Real-time MER, BER, SNR, and constellation display

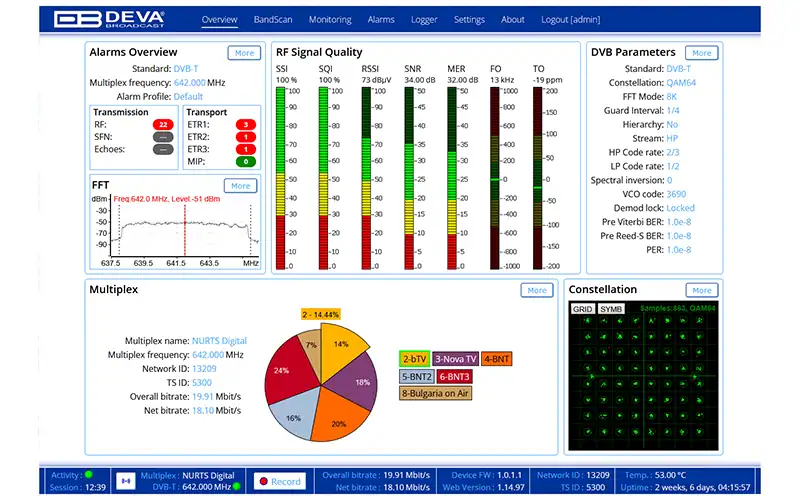

Integrated web interface for remote operation
SNMP and email alarm notifications

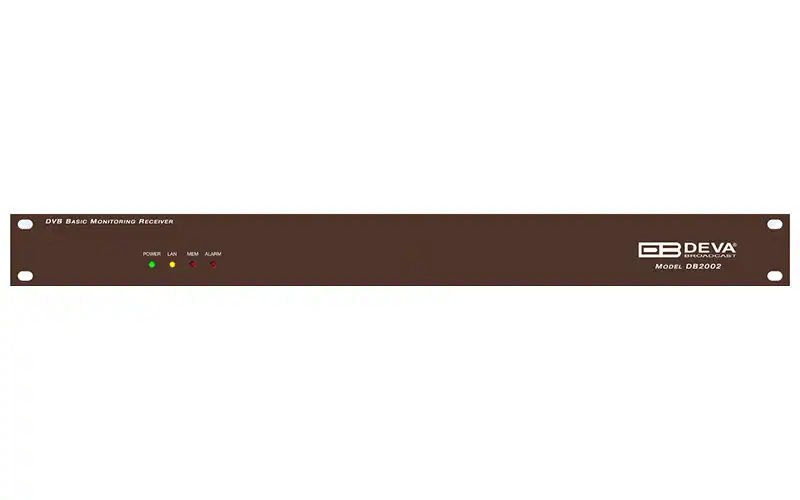

Compact and fanless design for 24/7 operation
Cost-effective monitoring for DVB broadcast networks
Easy setup and IP-based remote control
Technical Specifications
Supported Standards: DVB-T/T2, DVB-S/S2, DVB-C
Frequency Range: 50 MHz – 2.4 GHz (mode dependent)
Measurements: MER, BER, SNR, power, constellation

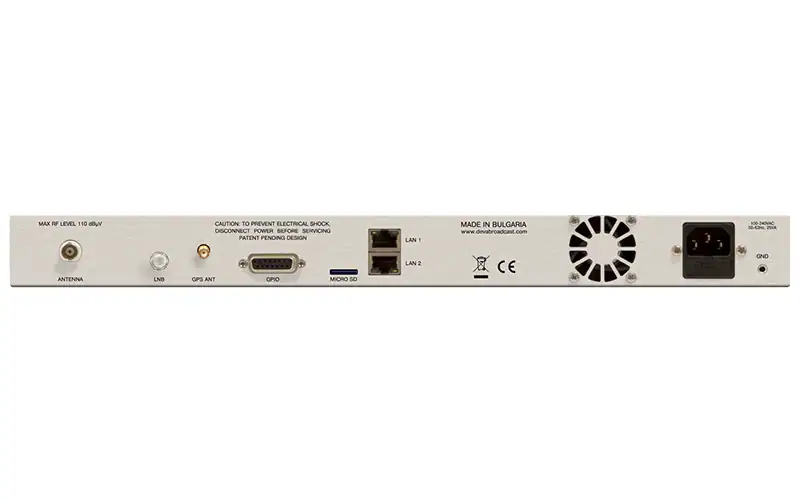

Interfaces: RF input, Ethernet RJ45, USB service port
Alarm Triggers: Signal loss, stream error, threshold deviation
Power Supply: 100–240 V AC or 12 V DC
Dimensions: 483 × 44 × 250 mm (1U)
Weight: ≈ 1.9 kg
