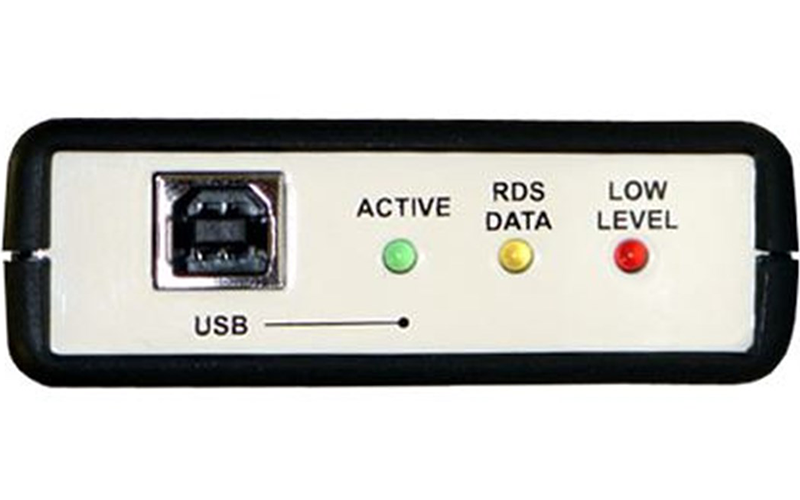

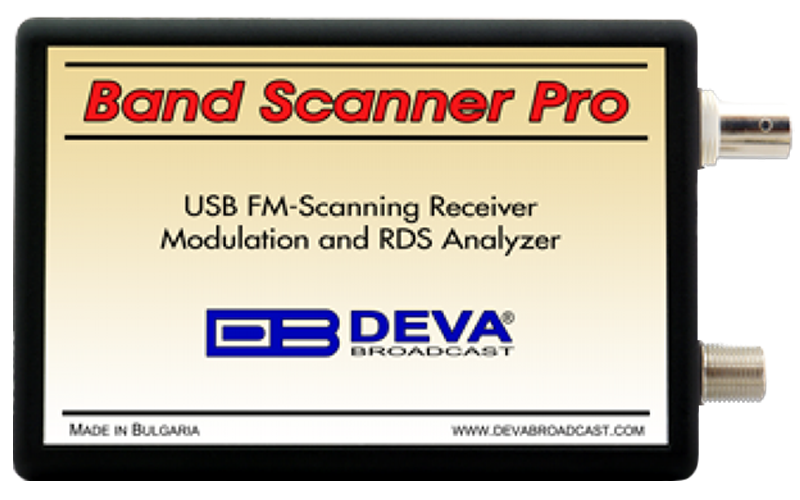

DEVA Band Scanner Pro – USB FM Scanning Receiver

💬 Product Description

The DEVA Band Scanner Pro – USB FM Scanning Receiver is a compact and versatile broadcast analysis tool designed for FM spectrum monitoring, signal verification, and RDS decoding. It provides professional engineers with precise RF data and graphical displays to evaluate signal coverage, interference, and modulation performance. The DEVA Band Scanner Pro is a professional USB FM scanning receiver designed for broadcast engineers who need fast, accurate signal analysis and RDS decoding.

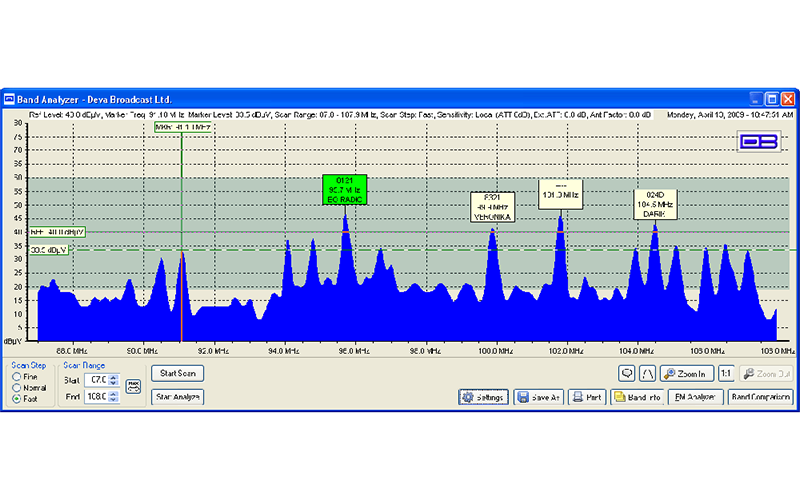

When connected via USB to a PC or laptop, the Band Scanner Pro transforms into a full-featured FM spectrum analyzer. The included Band Scanner software allows users to perform frequency sweeps, display real-time signal strength and deviation graphs, and capture RDS information for each detected station.

Its high-sensitivity tuner and wide dynamic range ensure reliable performance even in congested RF environments. The device supports geolocation tagging using an optional GPS receiver, making it ideal for field surveys, network planning, and transmitter alignment.

Key Features:

The DEVA Band Scanner Pro delivers precision FM spectrum analysis and RDS monitoring for both studio and field applications.

• Professional FM band scanning and spectrum visualization
• High-sensitivity tuner for precise signal detection
• RDS and stereo decoder with full data analysis
• USB connectivity for easy PC integration
• Real-time graphical display of signal levels and deviations
• Optional GPS support for geotagged signal mapping
• Frequency sweep and data logging functions
• Compact, lightweight design for field or studio use

Technical Specifications:

• Frequency Range: 87.5 – 108 MHz
• Input Impedance: 50 Ω (SMA)
• RF Sensitivity: –110 dBm typical
• RDS Decoding: PS, PI, RT, PTY, TP/TA
• PC Interface: USB 2.0
• Power Supply: via USB port
• Supported OS: Windows 7/10/11
• Dimensions: 120 × 80 × 25 mm
• Weight: 0.3 kg

Applications:

With its compact USB design, the DEVA Band Scanner Pro is ideal for signal verification, coverage surveys, and transmitter setup testing.

• FM spectrum monitoring and analysis
• RDS data collection and verification
• Signal coverage and interference mapping
• Broadcast transmitter alignment and optimization
