The DEVA Band Scanner 2 offers precise FM signal analysis, RDS decoding, and GPS-linked coverage mapping for professional broadcast engineers.
Original price was: $ 1,443.92.$ 1,415.04Current price is: $ 1,415.04.
Product Description

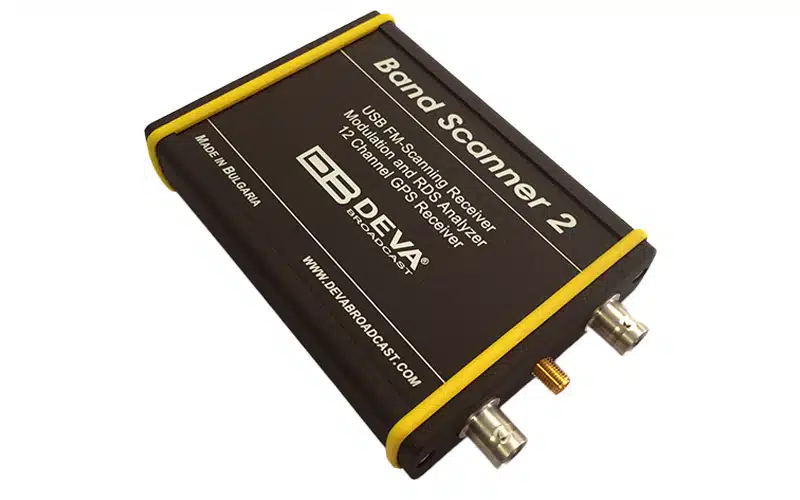

The DEVA Band Scanner 2 is a compact, professional FM modulation analyzer and RDS decoder designed for mobile and field use. Built for broadcast engineers, it allows precise measurement of FM parameters such as signal strength, deviation, MPX power, pilot tone, and RDS data across the FM band.
Equipped with USB connectivity and GPS integration, the Band Scanner 2 synchronizes signal readings with geographic coordinates to produce detailed coverage maps. This enables accurate visualization of transmitter reach, interference zones, and overall broadcast quality, making it ideal for drive tests and field surveys.

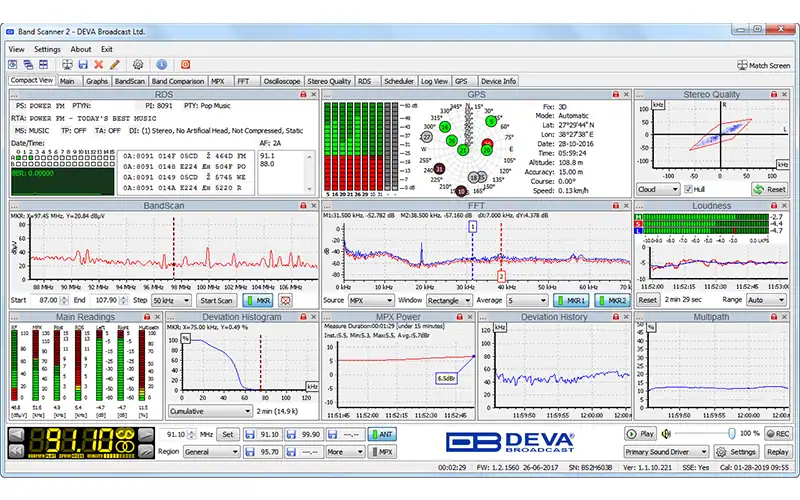

The included Band Scanner software provides a graphical user interface for real-time visualization and logging of measurement data. Engineers can export results for post-analysis or integration into broadcast system reports. The device’s compact, plug-and-play design makes it easy to transport and deploy for both field and laboratory applications.
Key Features:
• FM signal analysis with modulation, pilot, and RDS measurements
• GPS integration for signal mapping and coverage visualization
• Compact USB-powered design for field operation
• Real-time spectrum and signal strength display
• Software logging and data export for reporting
• Supports MPX power, deviation, and stereo separation metrics
• Compatible with Windows operating systems
Technical Specifications:
• Frequency Range: 87.5 – 108 MHz FM band
• RF Input: SMA connector, 50 Ω
• Measured Parameters: RF level, deviation, MPX power, pilot, RDS data
• Connectivity: USB 2.0, GPS receiver input
• Power Supply: USB powered (5V DC)
• Dimensions: 120 × 70 × 25 mm
• Weight: approx. 200 g
Applications:
• FM broadcast coverage analysis and verification
• Field testing and drive measurements
• RDS decoding and signal performance evaluation
• Transmitter maintenance and setup calibration
