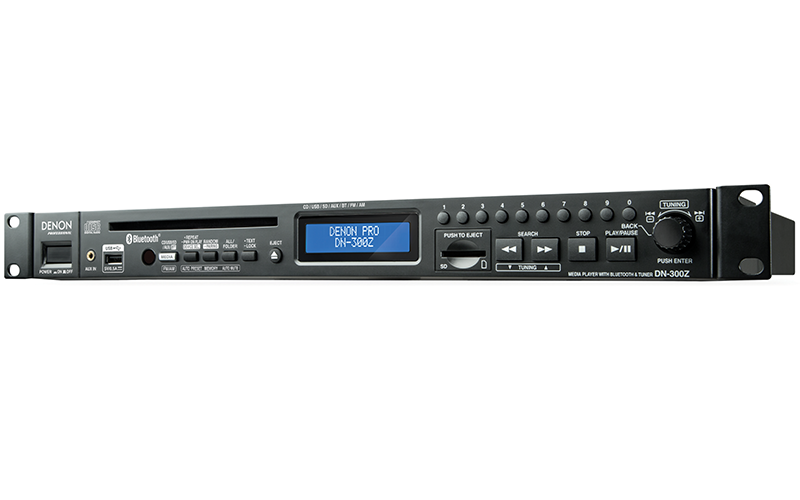

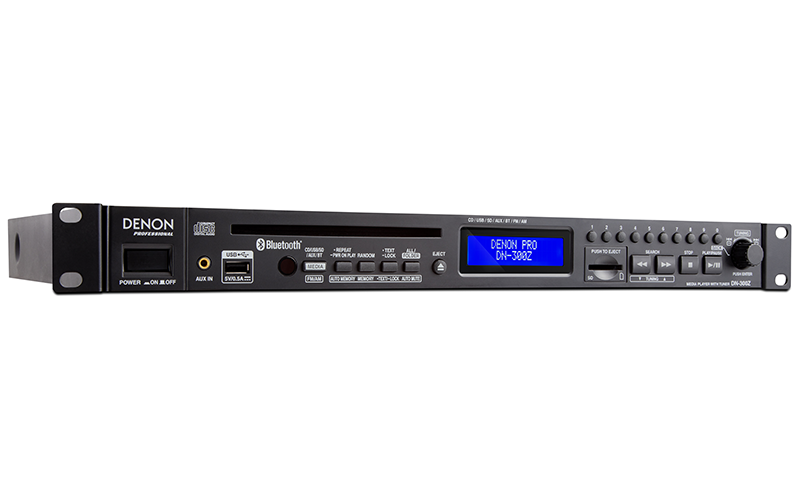

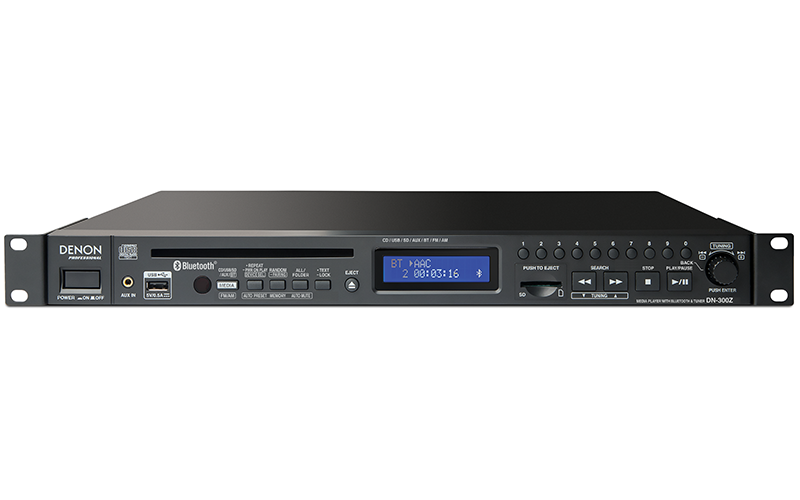

The Denon DN-300Z is a versatile, all-in-one audio player designed for a range of professional environments such as front-of-house settings, educational institutions, music and rehearsal studios, houses of worship, and restaurants. Its compact 1RU design incorporates multiple playback options, making it suitable for varied media needs.
Key Features:
- Media Playback:
- CD Player: Front-loading slot-in CD player with single-play mode.
- USB and SD/SDHC Slots: Supports FAT16/FAT32 file systems for USB thumb drives and SD cards.
- Bluetooth: Wireless audio playback with a range of up to 100 feet, capable of recalling up to 8 paired devices.
- File Formats: Compatible with CD-DA, MP3, WAV, and AAC formats.
- Audio Outputs:
- RCA and Balanced XLR Outputs: Ensures high-quality audio output, suitable for long cable runs without noise interference.
- User Interface:
- Backlit LCD Screen: Provides clear playback status and content information.
- Grouped Controls: Media controls are organized for intuitive use without deep menu navigation.
- Additional Inputs and Features:
- 3.5mm Input: For playback from any device with a 3.5mm output.
- AM/FM Tuner: Includes a dedicated audio output for multi-room use.
- Power-On-Play Mode: Automatically plays USB, SD, or CD tracks upon powering up.
- Remote Control: Comes with an IR remote for easy control.
- Construction:
- 1RU Chassis: Rack-mountable with removable rack ears.
- IEC-Weighted AC Inlet: Allows for a tidy, transformer-free connection to power sources.
Technical Specifications:
- Playable Formats:
- CD: CD-DA, CD-ROM, CD-R, MP3-CD.
- USB/SD: FAT16/FAT32, supporting WAV, MP3, AAC files.
- Audio Performance:
- Frequency Response: 20 Hz – 20 kHz (±1.0dB).
- S/N Ratio: Over 95 dB (A-weighted).
- THD: Less than 0.01%.
- Dynamic Range: Over 85 dB.
- Channel Separation: Over 80 dB.
- Bluetooth:
- Version 3.0, Class 2 Output.
- Range: Up to 100 feet.
- Supported Codecs: SBC, MP3, AAC, aptX.
- Profiles: A2DP, AVDTP 1.0, AVCTP 1.3, AVRCP 1.0, SSP.
- Tuner:
- FM: 87.5 MHz – 108.0 MHz (varies by region).
- AM: 522 kHz – 1710 kHz (varies by region).
- General:
- Power Supply: Varies by region (AC 100V-230V).
- Power Consumption: 30W.
- Dimensions: 19” x 13.7” x 1.73” (483 x 347 x 44mm).
- Weight: 7.94 lbs (3.6 kg).
The Denon DN-300Z is engineered to handle diverse media formats and playback requests seamlessly, making it a reliable choice for any professional audio environment.
