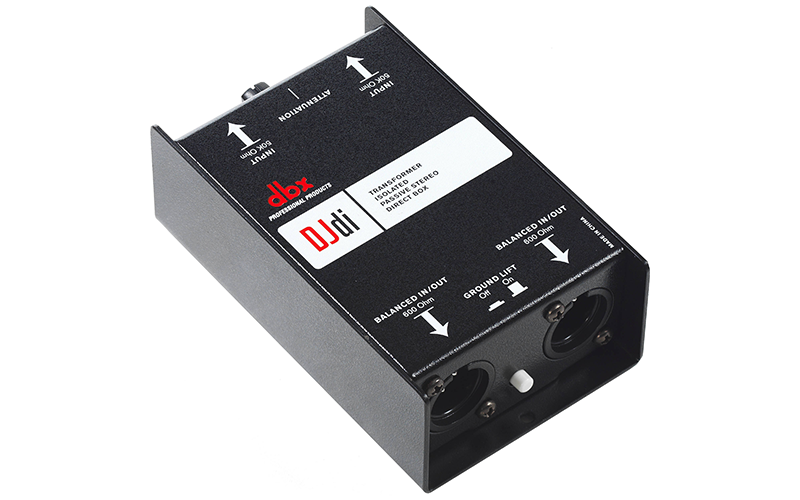

Introducing the dbx DJDI, a versatile 2-channel passive unit engineered to meet the demands of diverse audio applications. With its two channels, the DJDI effortlessly converts unbalanced signals into balanced outputs, ideal for seamless integration with mixers, PAs, and recording consoles. Its passive circuit design ensures clean, quiet, and uncolored operation without the need for power, offering reliability in any setup.
Key Features:
- Dual-channel design for enhanced flexibility
- (2) 1/4” 50k Ohm TS Inputs for easy connectivity
- (2) XLR Transformer-Isolated 600 Ohm Input/Outputs for balanced output
- Continuously variable input attenuator accommodates a wide range of signal levels
- Ground Lift Switch for eliminating ground loop issues
Specifications:
- Circuit: Passive
- Inputs: 2
- Input Connectors: 1/4” TS (Tip Hot, Sleeve Ground)
- Input Type: Unbalanced, RF Filtered
- Input Impedance: 50 kOhm
- Outputs: 2
- Output Connectors: Male XLR, Balanced, Pin 2 hot
- Output Impedance: 600 Ohms
- Noise Level: -104dBu (22Hz -22kHz, Input Shorted)
- THD+N (10Hz-22kHz): 0.23% typical @ +4dBu @ 1kHz
- Insertion Loss: 21dB typical
Experience seamless signal conversion and reliable performance with the dbx DJDI, your trusted companion for professional audio applications.
