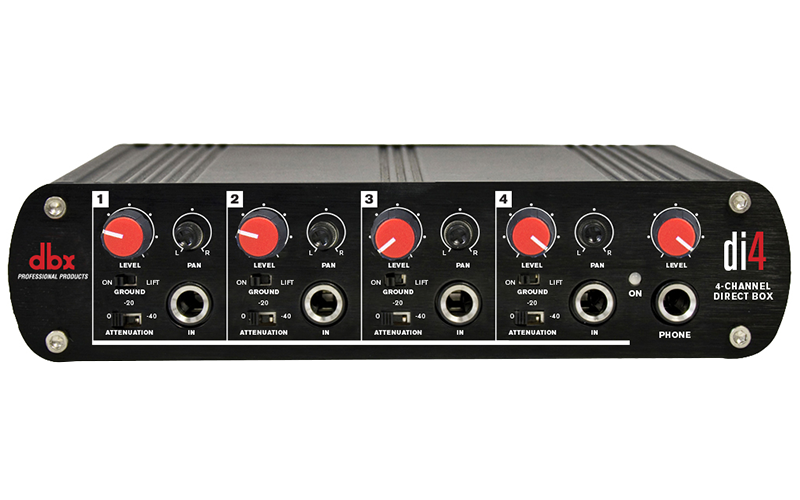

The dbx DI4 offers versatility and reliability for various audio applications. With four channels packed into a compact 1/2 RU package, it efficiently converts unbalanced signals into balanced outputs suitable for mixers, PAs, and recording consoles.
Key Features:
- Four independent DI box units in a compact package
- 20dB pad switch per channel for precise signal adjustment
- Ground (earth) lift switch per channel to eliminate unwanted noise
- Independent volume and pan controls per channel for line mixer output
- Master volume control for overall output management
- Convenient headphone output for monitoring
Specifications:
- Audio Input Connectors: 1/4″ TS unbalanced
- Input Impedance: 320k Ohms
- Peak Input Level: +15 dBu
- Headphone Connector: 1/4″ Jack
- Stereo Line Mixer Outputs: RCA Connectors

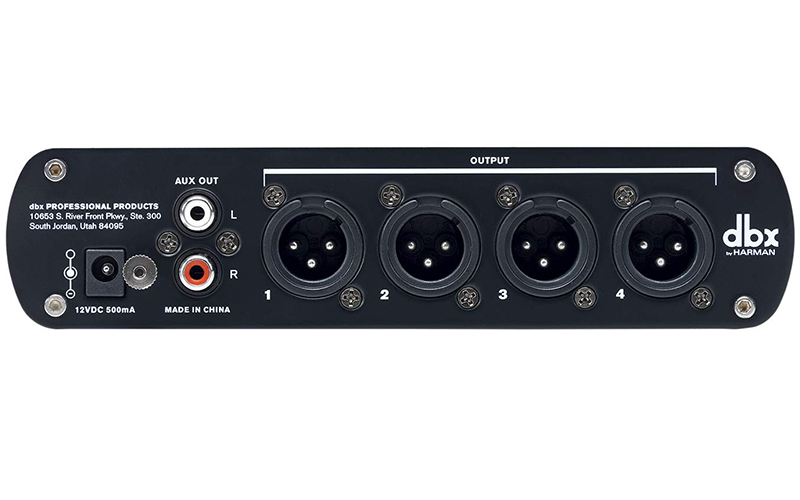

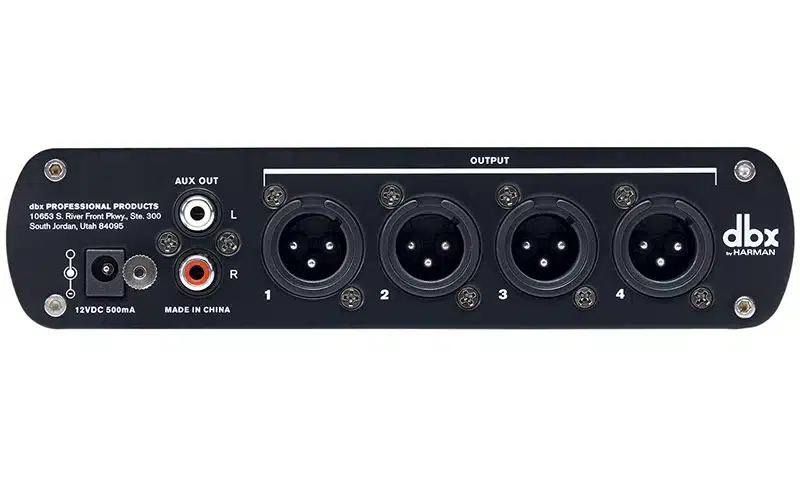

- XLR Balanced Outputs: XLR Connectors
- Output Impedance: 600 Ohms
- Max Output Level: +16 dBu
- Frequency Response: 20 Hz–20 kHz, 0 dB to -2 dB
- THD+Noise: 0.0008% typical at +4dBu, 1 kHz
- Interchannel Crosstalk: <-90dB, 20 Hz–20 kHz
- Power Supply: ~ 100-120 V AC, ~ 200-240 V AC, 50-60 Hz
- Power Consumption: 775 mW
- Dimensions: 1 3/4“ (44.5 mm) x 8“ (230.6 mm) x 8 1/2“ (217 mm)
- Weight: Net weight approx. 3.85 lbs. (1.75 kg)
Experience seamless signal conversion and precise control with the dbx DI4, your go-to solution for audio signal management.
