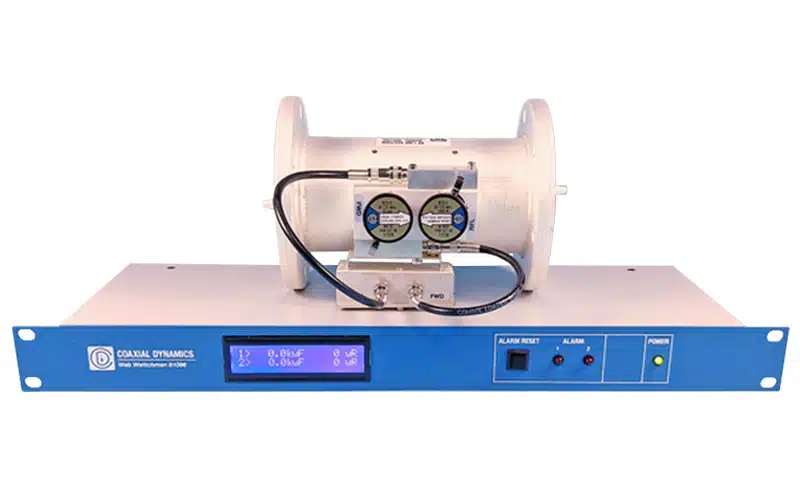

Coaxial Dynamics 81096

Wattchman® Wattmeter/Alarm system

Original price was: $ 3,329.91.Current price is: $ 3,169.98.

SKU: 117964 Brand: Coaxial Dynamics

The Coaxial Dynamics 81096 Web Wattchman Monitor/Alarm is a sophisticated system designed to safeguard your transmitter setup effectively. Here’s a breakdown of its features and specifications:

Features:

  1. System Protection: Ensures the safety of your transmitter system by monitoring both forward and reflected power in two transmission lines simultaneously.
  2. Bright Display: Equipped with a bright fluorescent display for clear visibility.
  3. Continuous Monitoring: Provides continuous display for both systems on the front panel.
  4. Remote Access: Allows for remote display and control, enabling monitoring from any location on the Internet or Intranet.
  5. Fault Notification: Offers audio and visual indicators for quick identification of faults.
  6. Warranty: Backed by a two-year limited warranty for assurance of quality and dependability.

Description:

The Model 81096 is part of the Wattchman series, designed for Internet/Intranet accessibility. It replaces the need for separate controllers for each transmission line by monitoring two lines (4 ports) with a single controller. It’s compatible with specialized line sections ranging from 7/8” to 6-1/8” and Coaxial Dynamics elements for analog or digital applications.

Specifications:

  • Power Range: 1 W to 250 kW
  • Frequency Range: 2 MHz to 1800 MHz
  • Modulation Type: Analog (FM, CW) / Digital (HDTV, DTV, CDMA, IBOC, etc.)
  • Accuracy: ±5% with proper Coaxial Dynamics line sections and elements
  • Alarm Sets: Master alarm plus individual alarms for each system
  • Terminals: 3 sets of dry contacts (Common, NO, and NC)
  • Power Requirements: 115/230 VAC, 50/60 Hz
  • Dimensions: 1.75 in. (H) x 19 in. (W) x 7 in. (D) – 1U Rack Mount
  • Weight: 6 lbs. (2.7 kg)

Additional Information:

  • The system quickly alarms in the event of abnormal load conditions.
  • Different power levels and frequencies can be monitored for each transmission line.
  • Alarm/shutdown requirements can be customized for individual transmission lines.
  • Alarm levels and power ranges for elements can be adjusted via the RJ-45 connector on the rear panel.

The Model 81096 offers comprehensive monitoring and alarm capabilities, ensuring the efficient operation and protection of your transmitter system.
