Biquad APG‑02 – Three-Band Analogue FM Audio Processor

Biquad APG-02 is a three-band analogue FM audio processor with wideband AGC, an integrated stereo generator, MPX clipper, balanced inputs and front-panel metering in 1U.

Biquad APG-02 – Three-Band Analogue FM Audio Processor combines programme-level control and stereo composite generation in a compact rackmount unit. Designed for FM broadcasting, it uses wideband automatic gain control followed by compression and peak limiting across three independent frequency bands. An integrated stereo generator and final MPX clipper complete the processing chain before the signal reaches a compatible transmitter.

Wideband AGC and Three-Band Processing

The input AGC manages average-level variations from the studio mixer. The following multiband stage processes three frequency ranges independently, using dedicated compressors and peak limiters to control programme dynamics. This arrangement supports a consistent on-air level and tonal balance across speech, music and other programme material.

Integrated Stereo Generator and MPX Clipper

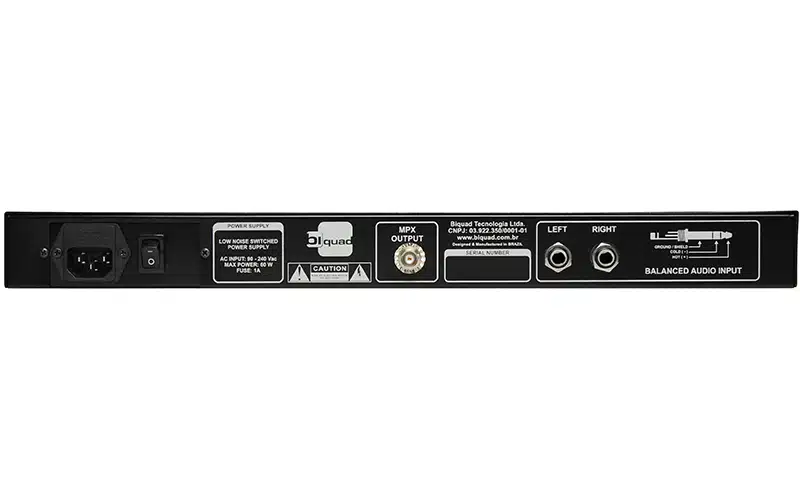

Biquad APG-02 includes a stereo generator with channel separation greater than 60 dB at 1 kHz. A final clipper controls peaks in the composite MPX signal. Balanced left/right analogue inputs and a rear-panel MPX output support installation between the studio audio source and a transmitter equipped with a suitable composite input.

Factory-Configured Operation

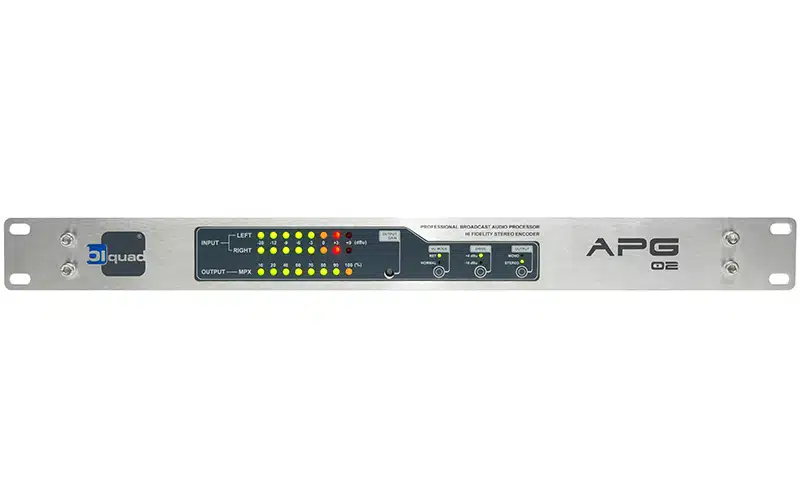

The processing is configured at the factory to simplify setup and routine operation. A front-panel VU meter switches between input and MPX output levels, while the output-level control supports matching to the transmitter. Installation still requires checking source levels and calibrating final transmitter modulation; factory configuration does not replace commissioning checks.

Compact 1U Rackmount Construction

The Biquad APG-02 brushed stainless-steel enclosure fits a standard 19-inch rack and occupies 1U. Its internal automatic power supply accepts 90–240 V AC at 47–63 Hz. Published dimensions are 482.6 × 44.5 × 210 mm, with a net product weight of 2.50 kg.

Basic Specifications

  • Factory model: APG-02.
  • Processing: three-band analogue FM.
  • Input levelling: wideband AGC.
  • Dynamics: multiband compression and peak limiting.
  • Stereo generator: integrated.
  • Stereo separation: >60 dB at 1 kHz.
  • Composite limiting: MPX clipper.
  • Inputs: balanced analogue L/R.
  • Output: composite MPX.
  • Metering: selectable input/MPX VU.
  • Power: 90–240 V AC, 47–63 Hz.
  • Rack format: 19-inch, 1U.
  • Net weight: 2.50 kg.
