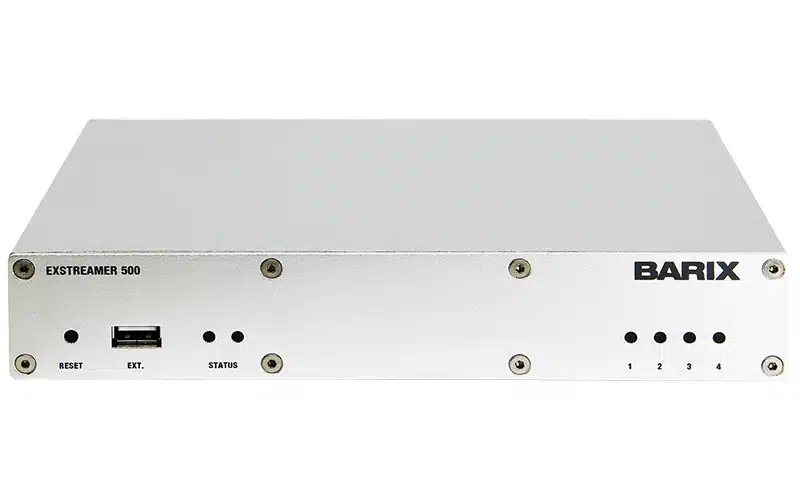

Barix Exstreamer 500

Introducing the Barix Exstreamer 500, a cutting-edge Multiformat IP Audio Encoder/Decoder tailored for Broadcast and Professional Audio Applications. This professional-grade multiprotocol IP audio de-/encoder, featuring balanced audio I/O, is designed to meet the demands of broadcast, professional, and VoIP applications. With support for Internet Radio and VoIP (SIP, RTP) codecs and protocols, the Exstreamer 500 stands out as the ideal choice for versatile audio applications.

Technical Specifications:

1. Electrical:
   • Input Voltage: 24 to 48 VDC ± 20%
   • Power Requirement: 8 Watts max.
   • 2-pin screw terminal connector
2. Ethernet:
   • 10/100Mbps auto-detect
   • RJ-45 connector with integrated Link & Activity LEDs
   • Protocols: TCP/IP, UDP, RTP, DHCP, Multicast capable
3. Analog Inputs & Outputs (stereo):
   • DB9 female socket
   • Optional XLR Cable Set
4. Analog Inputs:
   • Differential input, 18kOhm input impedance
   • Clipping level: 15dBu, 12.3 Vpp
   • Frequency response (-3dB): 20..20’000 Hz**
   • Signal to Noise Ratio: 87 dB, THD 0.01%
   • Stereo crosstalk: -88 dB
   • Input level software controllable (-3.. +19.5dB)
5. Analog Outputs:
   • Differential output, 40..60 Ohm output impedance
   • Output level software controllable
   • Full scale output voltage: 15dBu, 12.3 Vpp
   • Frequency response (-3dB): 20..20’000 Hz**
   • Signal to Noise Ratio: 92dB, THD 0.03%
   • Stereo crosstalk: -66 dB
6. RS-485:
   • 4-pin screw terminal connector
   • 300..230’400 Baud asynchronous, 7/8 bit
7. RS-232 INTERFACE:
   • Male 9-pin Sub-D connector
   • 230‘400 Baud asynchronous, tunneling or local control
   • 12 VDC supply output for external device (100 mA max.)
8. Audio Formats:
   • Encoding and decoding MP3 in variable and constant bit rate (VBR/CBR*, 8kbps..320kbps) at 8..48kHz sample frequency
   • PCM (L16, uLaw, aLaw) at 8..48kHz sample frequency
   • Decoding AAC+* (AAC-LC, HE-AAC, HE-AAC v2)
9. Discrete I/O:
   • Two 6-pin screw terminal connectors
   • 4 contact closure sensing inputs
   • 4 relay contacts, 24V 0.5A, normally open
10. Mechanical:
    • Aluminum case, 620g, rack-mountable using accessory bracket
11. Dimensions (W x H x D):
    • 216x38x125mm (8.5×1.5×4.92 inch)
12. MTBF:
    • According to MIL217F at 25°C
    • Exstreamer 500 min. 410,000 hours

*Exstreamer 500 Hardware revision 2 only **Depends on used codec, best results @48kHz PCM

Experience professional-grade audio versatility with the Barix Exstreamer 500 – your reliable solution for top-tier audio encoding and decoding in diverse applications.
