Barix Exstreamer 110

The Barix Exstreamer 110 is an Audio over IP decoder with various features designed for flexible and efficient audio playback. Here are the key features and applications:

Features:

1. Multi-Format Support: The Exstreamer 110 supports a variety of audio formats, including MP3, AACplusV2, WMA, PCM, G.711, and Ethersound. This ensures compatibility with different streaming sources and applications.

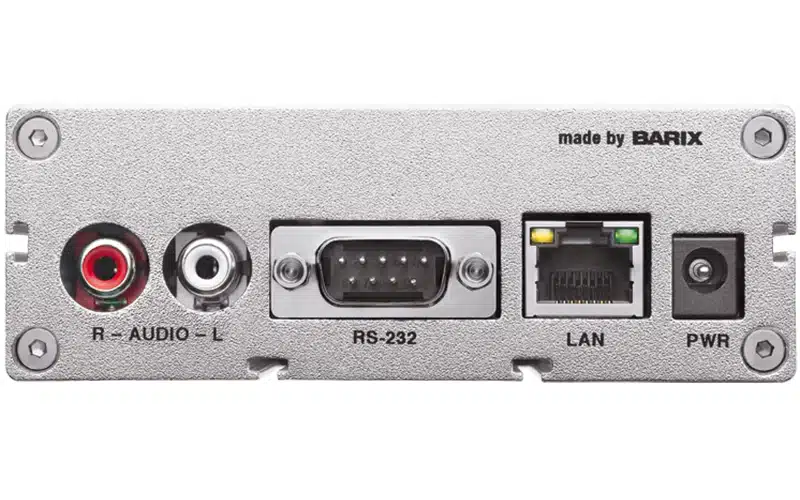

2. Audio Output Options:
   • Line Level Output: Provides a stereo line-level output with a 4.2Vpp signal, suitable for connecting to amplifiers or other audio equipment.
   • Headphone Connection: Includes a 3.5mm headphone jack for private audio monitoring.
3. Display and User Interface:

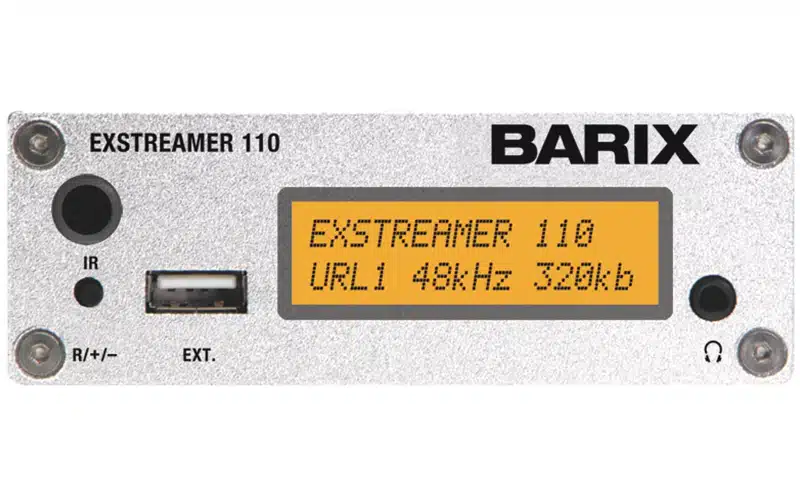

   • Backlit LCD (2×16 characters): Features a backlit LCD display for configuration, status information, and title display. This allows easy setup and monitoring of the device.
   • IR Receiver and Remote Control: Built-in IR receiver and included IR remote control enable channel selection and volume control, enhancing user convenience.
4. Relay Output: The Exstreamer 110 is equipped with a relay output (24V 0.5A), which can be utilized to activate amplifiers or trigger other external devices. This adds flexibility to the device’s functionality.
5. Low Power Consumption: Designed with low power consumption, making it energy-efficient and suitable for continuous operation.
6. USB Interface (Model 110): The Exstreamer 110 includes a USB interface, allowing for easy connection to USB flash drives. This feature is useful for playing audio from external storage devices.
7. Micro SD Slot (Model 120): The Exstreamer 120 variant features a Micro SD slot, providing an alternative method for playing audio from compatible memory cards.

Applications:

1. Streaming Internet Radio: Suitable for streaming internet radio in bars and clubs.
2. Hotel Room Audio Channels: Distributes radio channels in hotel rooms via an IP network.
3. IP Public Address System: Functions as a playback point in an IP public address system.
4. In-Store Audio Distribution: Useful for distributing audio in retail environments.
5. Audio Playback from Various Sources:
   • PC or Jukebox Application: Can play audio from a PC or a jukebox application.
   • Flash Memory: Supports playing audio from USB flash drives (Model 110) or Micro SD cards (Model 120).
6. Commercial Audio Streaming: Applicable for various commercial audio streaming applications.
7. Broadcast Station Confidence Check: Provides a confidence check for broadcast stations.

The Exstreamer 110 and 120 are designed to be versatile, catering to a wide range of audio distribution needs with a focus on ease of use and compatibility with multiple audio formats.
