AudioScience Iyo-Dante 8.8MR – 8×8 RJ45 Audio Interface

AudioScience Iyo-Dante 8.8MR is an 8×8 Dante interface with StudioHub RJ45 analogue connections, mic/line inputs, line outputs, isolated GPIO, individual phantom power and AES67 interoperability.

AudioScience Iyo-Dante 8.8MR – 8×8 RJ45 Audio Interface connects analogue microphones and line-level equipment to a Dante network. Eight balanced microphone/line inputs and eight balanced line outputs use StudioHub-format RJ45 connections, with isolated GPIO for external control integration. The enclosure occupies 1U in a standard 19-inch rack.

StudioHub Analogue Audio Connections

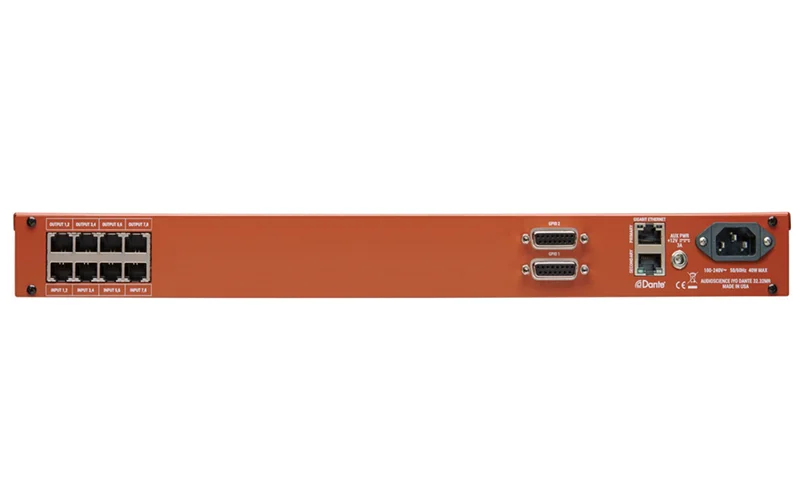

The AudioScience Iyo-Dante 8.8MR analogue RJ45 sockets follow the StudioHub pinout and are separate from the unit’s Ethernet ports. Inputs accommodate levels from −60 to +24 dBu, while balanced outputs support levels up to +24 dBu. Individually switchable 48 V phantom power supports compatible microphones, subject to the published current limits. A/D and D/A conversion uses 32-bit converters.

Dante Routing and Browser-Based Control

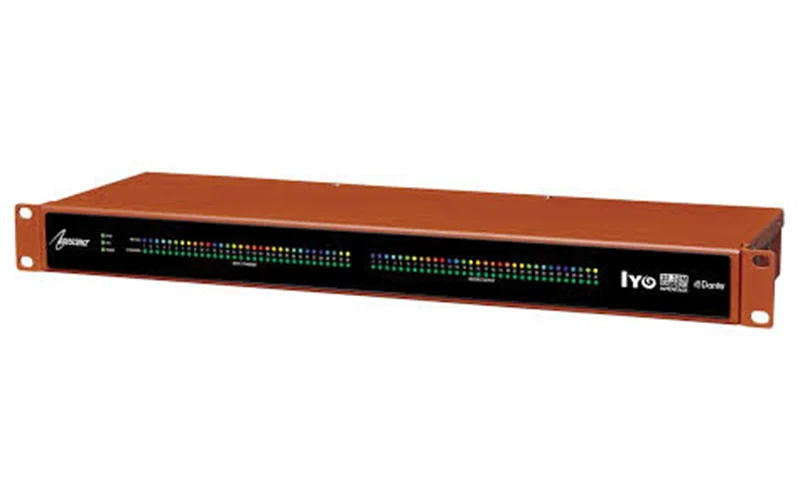

AudioScience Iyo-Dante 8.8MR uses Dante Controller for network audio routing. An embedded web interface provides input/output level adjustment, metering, settings and GPIO control. Front-panel RGB LEDs display channel levels and streaming status, with additional indicators for synchronisation, system status and power.

Isolated GPIO for Broadcast Integration

Two DB15 ports each provide five opto-isolated inputs and five relay-isolated outputs. This gives ten control inputs and ten outputs across the unit. Use the manufacturer’s pinout and electrical limits when connecting switches, indicators or external control equipment; GPIO is not an additional audio connection.

Network and Power Redundancy Options

Two dedicated Ethernet ports support redundant Dante networking or switched operation. AES67 mode enables interoperability with compatible systems. The internal mains supply accepts 90–260 V AC, while an optional 12 V DC supply provides an independent power path. AC and DC can operate separately or together for failover redundancy.

Basic Specifications

  • Factory model: Iyo Dante 8.8MR.
  • Analogue I/O: eight mic/line inputs and eight line outputs.
  • Audio connections: StudioHub-format RJ45.
  • Conversion: 32-bit A/D and D/A.
  • Published sample rates: 44.1, 48 and 96 kHz.
  • Network: dual 100/1000 Mb/s Ethernet.
  • Protocols: Dante with AES67 interoperability.
  • GPIO: two DB15 ports, five inputs and outputs per port.
  • Power: internal AC and optional external 12 V DC.
  • Dimensions: 482 × 152 × 44 mm.
