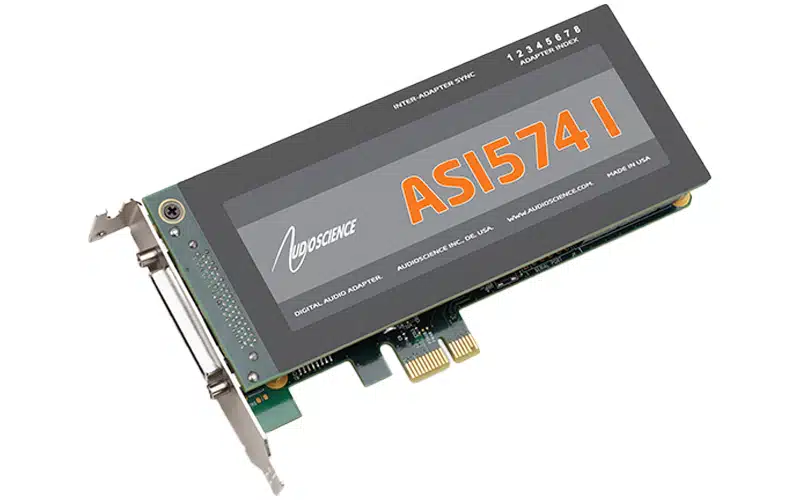

AudioScience ASI5741 – PCIe Sound Card with AES/EBU I/O

AudioScience ASI5741 is a low-profile PCIe sound card with four stereo AES/EBU inputs and outputs, input sample-rate conversion, onboard DSP routing and PCM support up to 96kHz.

AudioScience ASI5741 – PCIe Sound Card with AES/EBU I/O provides professional digital audio connectivity for broadcast automation, production and installed-sound computers. Four stereo AES/EBU inputs and four stereo AES/EBU outputs provide eight physical audio channels in each direction. Onboard DSP mixing and routing support flexible connections between software streams and digital audio equipment.

Four Stereo AES/EBU Inputs and Outputs

The AudioScience ASI5741 is the digital-only model in the ASI574x family. Its 110-ohm AES/EBU interfaces support sample rates of 32, 44.1, 48, 88.2 and 96 kHz. Sample-rate converters on every digital input help accommodate incoming sources within the supported range. The card does not include analogue inputs, microphone preamps or analogue monitor outputs.

Multiple Streams and DSP Routing

AudioScience ASI5741 provides four or up to twelve playback streams and four or up to eight recording streams, depending on adapter mode. AudioScience’s “anything to anywhere” routing allows software audio paths to be mixed and assigned to the available hardware connections. SSX2 operation supports multichannel streams containing up to eight channels for compatible playback, recording and mixing applications.

Low-Profile PCI Express Installation

The half-height PCI Express x1 format suits compatible low-profile workstations and appropriately configured 2U servers. A 68-pin VHDCI connector carries the digital connections through a suitable breakout arrangement. The datasheet lists CBL4104 with CBL1144 or BOB1038; confirm current accessory availability and whether the required cables are included.

Windows and Linux Integration

Manufacturer drivers support Windows and Linux. Windows facilities include WDM, ASIO and ASIControl for adapter configuration and verification. Confirm the driver release, application interface and required operating mode before installation. Up to eight cards are supported in one system, subject to host resources and software compatibility.

Basic Specifications

  • Factory model: ASI5741.
  • Interface: PCI Express x1.
  • Format: low-profile / half-height.
  • Inputs: four stereo AES/EBU.
  • Outputs: four stereo AES/EBU.
  • Digital impedance: 110 Ω.
  • Input sample-rate conversion: all inputs.
  • Sample rates: 32, 44.1, 48, 88.2 and 96 kHz.
  • PCM formats: 8-, 16-, 24- and 32-bit.
  • Audio connector: 68-pin VHDCI.
  • Dimensions: 138 × 70 × 15 mm.
  • Published card weight: 227 g maximum.
