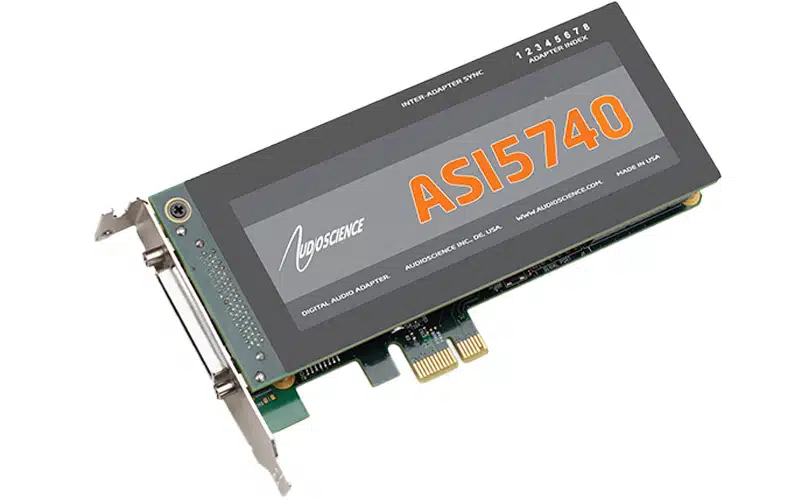

AudioScience ASI5740 is a low-profile PCIe sound card with four balanced stereo analogue inputs and outputs, 24-bit conversion, onboard DSP routing and sample rates up to 96kHz.
$ 1,815.00
AudioScience ASI5740 – PCIe Sound Card with Analog I/O provides professional analogue connectivity for broadcast automation, production and installed-sound computers. Four balanced stereo inputs and four balanced stereo outputs deliver eight physical audio channels in each direction. Onboard DSP mixing and routing allow software playback and recording streams to be assigned within a compatible audio system.
The ASI5740 accommodates input and output levels from −10 to +24 dBu, adjustable in 0.5 dBu steps. Its 24-bit oversampling converters support recording and playback at sample rates up to 96 kHz. SoundGuard transient-voltage suppression protects the I/O. These are line-level connections; microphone preamps, phantom power and headphone amplification are not specified.
AudioScience ASI5740 supports four or twelve stereo playback streams, depending on adapter mode, with software streams mixed to the four physical stereo outputs. AudioScience’s “anything to anywhere” mixing and routing supports flexible signal assignments. SSX multichannel operation accommodates streams containing up to eight channels. Confirm the required recording-stream arrangement against the selected driver, adapter mode and application.

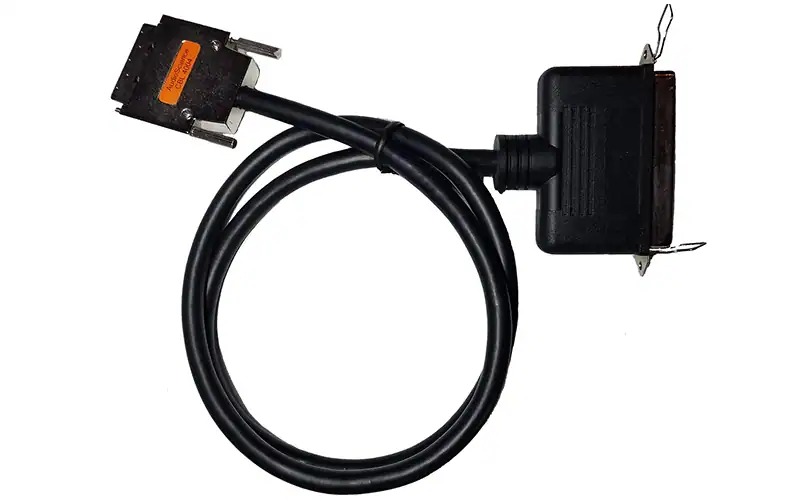

The half-height PCI Express x1 format suits compatible low-profile workstations and appropriately configured 2U servers. A 68-pin VHDCI connector carries the analogue connections through a suitable breakout arrangement. The manufacturer lists CBL4004 with CBL1044 or BOB1038; confirm current accessories and whether they are included. Check the supplied mounting bracket and chassis clearance before purchase.
Manufacturer software supports Windows and Linux, with WDM and ASIO interfaces documented for Windows. ASIControl provides adapter setup and functional verification. Up to eight cards are supported in one system, subject to host resources and application compatibility. The ASI5740 provides analogue audio only; AES/EBU facilities belong to other ASI574x models.
