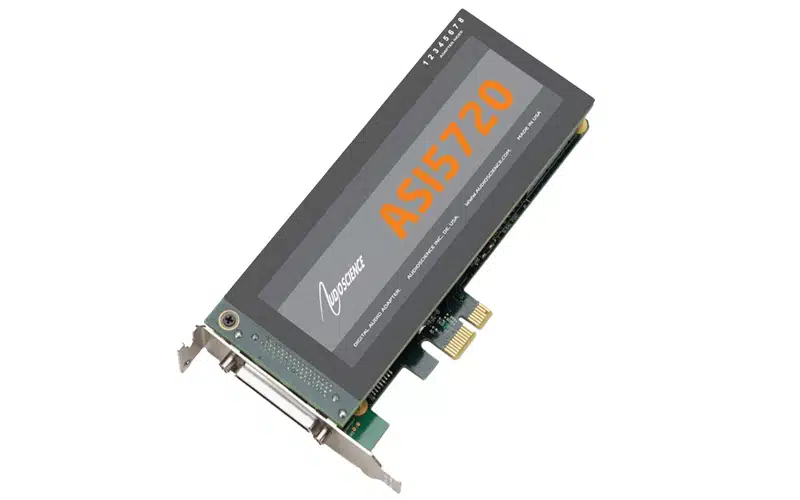

AudioScience ASI5720 is a low-profile PCIe sound card with balanced analogue stereo I/O, onboard DSP routing, up to six playback streams and 96kHz PCM support.
$ 1,300.00
AudioScience ASI5720 – Low-Profile PCIe Sound Card provides professional analogue audio connectivity for broadcast automation, production and installed-sound computers. Two balanced stereo inputs and two balanced stereo outputs provide four physical channels in each direction. Onboard DSP mixing and routing allow multiple software streams to share these connections within a compatible host system.
The AudioScience ASI5720 supports up to six mono/stereo PCM playback streams and four mono/stereo recording streams, depending on adapter mode. AudioScience’s “anything to anywhere” routing supports flexible signal assignments. These stream counts describe software audio paths, not additional physical connectors. The default 4-Play mode provides four playback streams; 6-Play mode enables six.

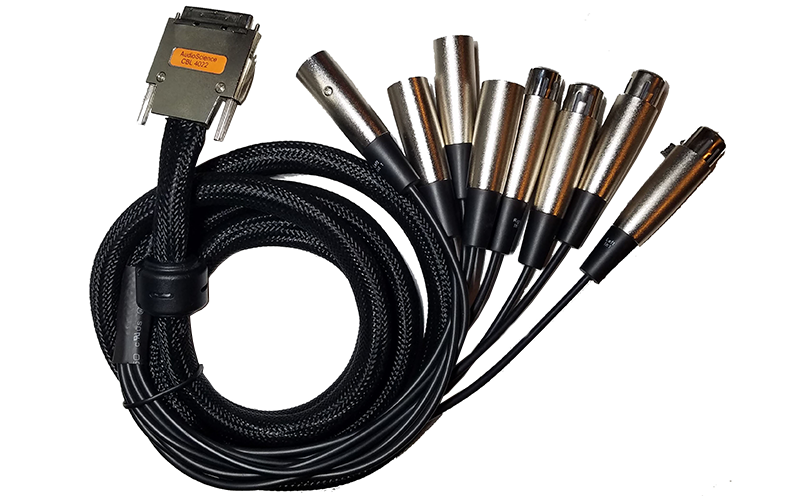

AudioScience ASI5720 supports 8-, 16-, 24- and 32-bit PCM formats at sample rates from 32 to 96 kHz. Balanced analogue inputs and outputs accommodate levels up to +24 dBu. SoundGuard transient-voltage suppression protects the I/O. A 68-pin VHDCI connector carries the analogue connections, with the manufacturer listing its CBL4022 XLR breakout cable as a connection option.
The half-height PCI Express x1 card suits compatible low-profile computer chassis, including appropriately configured 2U servers. Published card dimensions are 138 × 70 × 15 mm. Confirm the supplied bracket, slot clearance and cable access before ordering. Up to eight cards are supported in one system, subject to the host and software configuration.
Manufacturer drivers support Windows and Linux, with WDM and ASIO interfaces available under Windows. ASIControl provides card configuration. Verify the driver release and application compatibility for the intended operating system. The ASI5720 is an analogue-only model; AES/EBU and dedicated external clock connections belong to the ASI5722.
