The Audio Design ProDAB-2 Dual and ProDAB-1 Plus are professional DAB receivers designed for monitoring and controlling radio broadcasts in professional settings. Here’s a breakdown of their features and specifications:
Overview
The ProDAB Series offers professional-grade DAB receivers that ensure confidence in monitoring and controlling radio broadcasts from anywhere. Built for reliability, these units seamlessly handle dynamic MUX reconfigurations and provide a full range of functions suited for mission-critical applications.
Models Available

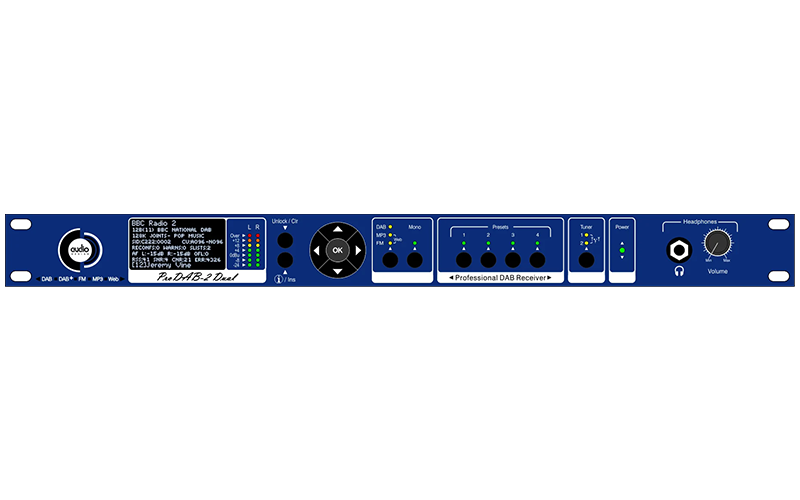

- ProDAB-2 Dual
- Twin tuner unit with 2 separate stereo outputs
- Supports DAB/DAB+ & FM, Diversity, Web Radio & MP3 Playout
- Automatic lockout on front panel controls to prevent accidental configuration changes
- Built-in web server for control, status monitoring, and live streaming of audio content
- ProDAB-1 Plus
- Single tuner unit with similar features to ProDAB-2 Dual but without Diversity
- Features 1 stereo output
Feature List
- Audio Outputs
- Balanced audio outputs on XLR with adjustable level controls
- AES3 digital output with adjustable sampling rates
- AES67 & Multicast Connectivity
- DAB/DAB+ & FM Reception
- Supports DAB/DAB+ and Stereo FM reception
- MP3 Playout
- Stand-by MP3 playout with adjustable silence detect threshold
- Operational Modes
- Dual, Independent, or Diversity Operation (ProDAB-2 Dual only)
- GPIO
- Full range of GPIO including Preset/Profile selection, Traffic Flag (FM), and Mono/Stereo configuration
- Control and Monitoring
- RS232 output of RDS data and Service information (DAB/DAB+)
- LAN control and monitoring via Internet
- Built-in web server and FTP server for uploading MP3 files
- Display and Audio Output
- High-resolution white OLED display
- Headphone output with volume control
- Off-air confidence receiver
- Fail Over
- DAB/FM/Web or MP3 failover (limited to one tuner channel at a time)
Specifications
- Audio Outputs
- Analogue audio: Balanced output level adjustable from +18dBu to -2dBu ref fsd
- Digital audio: AES3 with adjustable sampling rates (32kHz to 96kHz)
- Headphone output suitable for headphones >30 Ω
- GPIO
- 25-way D female, open collector outputs, 5v 10kΩ inputs
- Inputs & Outputs
- Various inputs and outputs including RDS Traffic flag, RS232, LAN, and Antenna
- RF Sensitivity
- DAB/DAB+: 2.0µV BER = 10^-4 typical
- FM: 0.7µV SINAD = 26dB typical
- Power
- 90v – 240vac 50/60Hz
- Size & Weight
- Rack mounting 1RU x 212mm (8.35”) deep
- ProDAB-1 Plus: 1.65Kg (net)
- ProDAB-2 Dual: 1.75Kg (net)
These receivers are engineered to meet the demands of professional broadcast environments, offering high performance, reliability, and versatile features for monitoring and controlling radio broadcasts.
