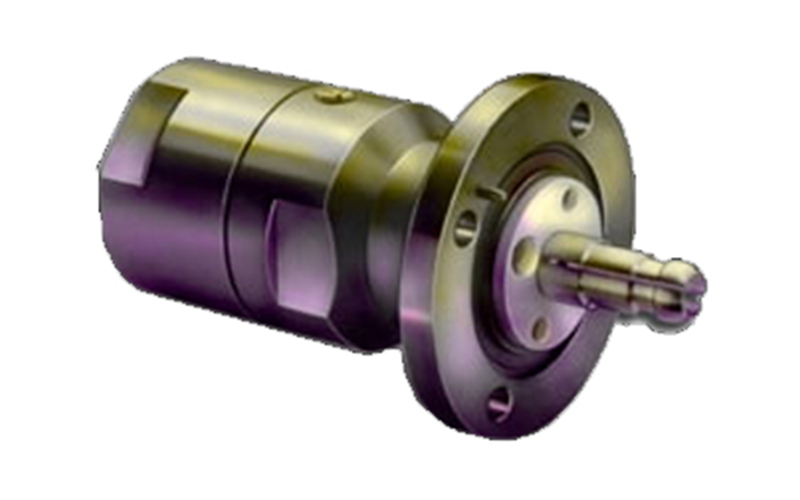

The Andrew AL5E78-PS Positive Stop Connectors offer a groundbreaking solution for addressing Ease connector attachment issues and ensuring exceptional RF transmission line performance. Here’s a detailed breakdown of its features and specifications:
Features:
- No Special Tools Required: Installation is simplified with no need for specialized tools or torque wrenches, streamlining the process.
- Quick Tightening: Achieves full tightness in less than one rotation, saving time and effort for installers.
- Visual and Mechanical Fit Verification: Provides clear visual and mechanical verification of a correct fit, minimizing guesswork and ensuring proper attachment.
- Integrated Sealing Mechanism: Ensures a secure seal against water ingress, enhancing reliability even when unmated.
- Faster, Easier Installation: Simplified installation process reduces labor time and effort required.
- Excellent Electrical Performance: Maintains high-quality electrical performance, critical for RF transmission line integrity.
Specifications:
Product Classification:
- Product Type: Wireless and radiating connector
- Product Brand: HELIAX® | Positive Stop™
- Product Series: AVA5-50 | AVA5RK-50
General Specifications:
- Body Style: Straight
- Cable Family: AL5-50 | AVA5-50
- Inner Contact Attachment Method: Captivated
- Inner Contact Plating: Silver
- Interface: 7/8 in EIA Flange
- Mounting Angle: Straight
- Outer Contact Attachment Method: Ring-flare
- Outer Contact Plating: Trimetal
- Pressurizable: No
Dimensions:
- Length: 88.65 mm | 3.490 in
- Diameter: 57.15 mm | 2.250 in
- Nominal Size: 7/8 in
With these innovative features and precise specifications, the Andrew AL5E78-PS Positive Stop Connectors offer a reliable solution for ease of installation and outstanding RF transmission line performance.
