The Amphenol Procom LBLAD-600 Lindenblad array is designed for mixed polarisation broadcast on FM radio systems.
Click to enlarge

    Amphenol Procom LBLAD-600

    The Amphenol Procom LBLAD-600 Lindenblad array is designed for mixed polarisation broadcast on FM radio systems.

    Original price was: $ 1,851.63.Current price is: $ 1,757.58.

    Download PDF Brochure
    SKU: 123331 Brand: Amphenol Procom

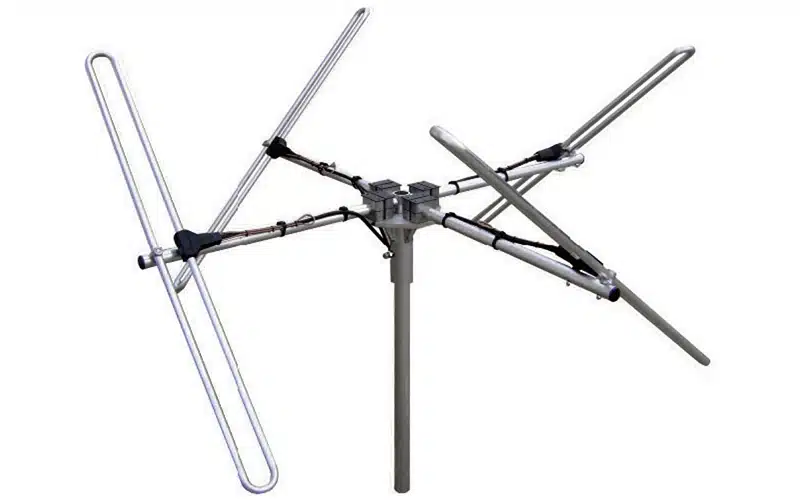

    The Amphenol Procom LBLAD-600 Lindenblad array is designed for mixed polarisation broadcast on FM radio systems. The array consists of four folded dipoles affixed to a rugged mounting bracket, fed in phase from a machined power splitter, to achieve an omnidirectional mixed polarisation antenna. The arrays give a maximum gain of 0.5dBd. The balun assembly is completely encapsulated in poyurethane resin, totally preventing moisture ingress. The power splitter / array input is terminated standard with an ‘N’ type female.
    • Former Skymasts brand product.

    Specifications

    Electrical
    Frequency 88 – 108 MHz
    Max. Input Power 600 W
    Polarisation Mixed
    3 dB Beamwidth, E-Plane 65 °
    3 dB Beamwidth, H-Plane Omnidirectional
    Impedance 50 Ω
    Gain 0.5 dBd (2.7 dBi)
    VSWR < 1.2:1
    Bandwidth Optimised for single transmit frequency
    Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
    Mechanical
    Elements 19 dia. x 1.6 mm wall aluminium alloy grade 6063T6
    Connection(s) N(f) on 3m RG213/U cable
    Dipole Boom 31.7 mm dia. x 2.6 mm wall aluminium alloy grade 6082T6
    Fasteners Stainless steel grade A2-70
    Element Clamps Diecast Al / Zinc alloy
    Weight 17 kg / 37.48 lb
    Mounting Bracket Welded flange bracket to suit 50mm support pole
    Balun Encapsulant Polyurethane Resin U-600

    Diagram and Mounting

    RADIATION PATTERNS

    Azimuth | 98 MHz Azimuth | 98 MHz

    RADIATION PATTERNS

    Elevation | 98 MHz Elevation | 98 MHz
