Alupro M250 is a modular aluminium lattice mast with 250 mm width and 4 m sections, designed for guyed antenna installations up to 20 m under specified wind and loading conditions.
Alupro M250 Aluminium Lattice Mast provides a slender, modular antenna-support structure for telecommunications installations where appearance and visual impact matter. Its 250 mm lattice width offers a less conspicuous alternative to larger structures, while aluminium construction keeps individual sections manageable. The mast is assembled from 4 m segments, allowing the required height to be selected as part of a complete installation design.

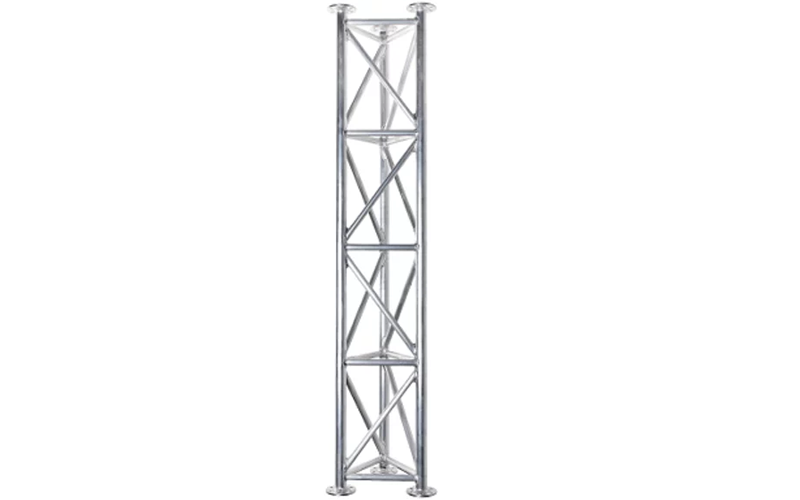

Each standard section weighs approximately 9.7 kg. The sectional format supports transport and assembly without treating the complete mast as one continuous component. Alupro M250 is supplied as a guyed system rather than a freestanding tower: its performance depends on the complete arrangement of mast sections, base, guys and anchoring. Select the assembly to match the intended antenna position and available site space.
The Alupro M250 factory specifies operation in Wind and Icing Zone I, with provision for 0.5 square metres of antenna area at the top and a maximum configured height of 20 m. These figures describe the stated design conditions, not an unrestricted rating for every location. Antenna loading, local wind exposure, icing and mounting arrangements must be checked against the chosen configuration before installation. Do not assume that every mast height supports the same arrangement without confirmation.
The listed set includes aluminium sections, an aluminium base with two degrees of freedom for on-site installation, a lightning arrester, installation screws and guy wires. Guying accessories include shackles, turnbuckles and thimbles. Confirm the supplied quantities and configuration when ordering. Factory drawings are available for selected assemblies, supporting identification of the intended layout. The published section weight excludes any assumption about the gross shipping weight of a complete kit; packaging and accessory quantities need separate confirmation for delivery planning.
