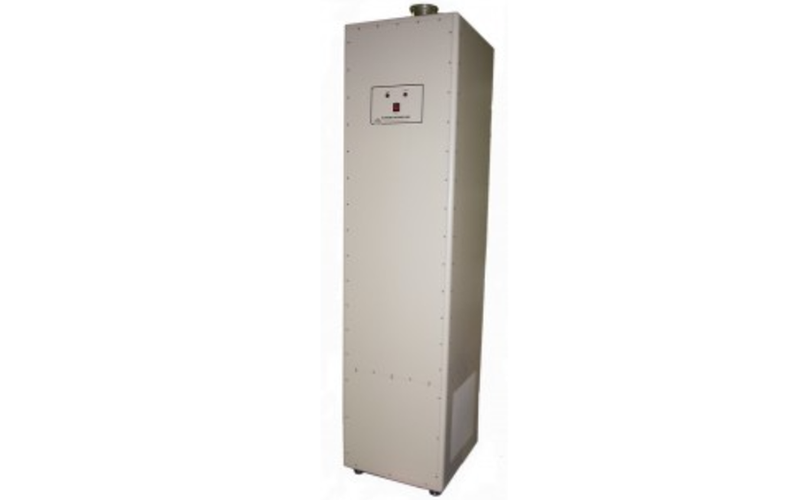

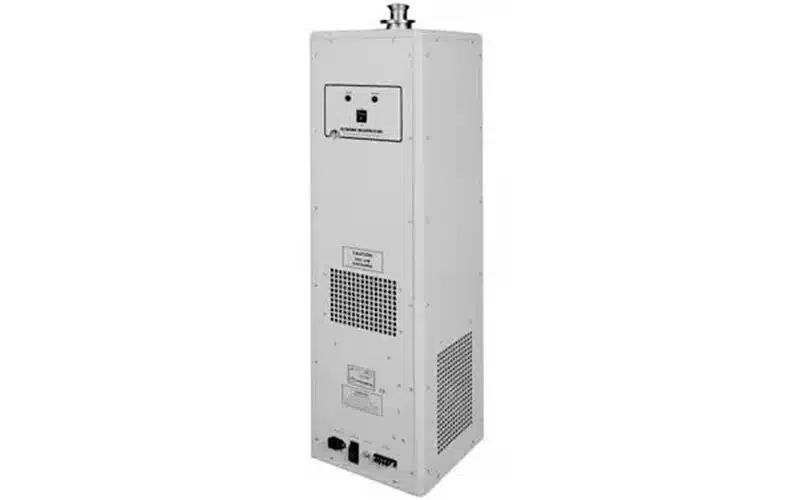

Altronic 6705 Series

Introducing the Altronic 6705 Series – Your Economical Solution for Air-Cooled Terminators in 50-Ohm Coaxial Transmission Line Systems

Altronic presents the 6705, an economical air-cooled terminator designed for 50-ohm coaxial transmission line systems. Ideal for manufacturers of transmitters, microwave components, and power tubes, as well as transmitting stations, this innovative dummy load ensures optimal conditions during the design, testing, adjusting, and aligning of transmitters and components.

The 6705 Series boasts a rugged and precision-designed configuration, providing reliability, serviceability, safety, convenience, and cost-effectiveness perfectly tailored for today’s modern RF applications.

Key Features:

1. Stable VSWR: Experience a consistently stable Voltage Standing Wave Ratio for enhanced performance.
2. Thermal Interlock: Benefit from a thermal interlock mechanism to safeguard against overheating and ensure operational safety.
3. Silver Contacts on Special Film Resistors: Eliminate resistor failure with silver contacts on specially designed film resistors, enhancing longevity and performance.
4. Economical: Enjoy cost-effectiveness without compromising on quality or functionality.
5. Standby Option Available: Incorporate a standby option for added flexibility and power management.

Specifications:

• Power Rating: 5kW continuous duty
• Impedance: 50 ohms nominal
• Frequency Range: DC to 110MHz (Optional 220MHz, consult factory)
• VSWR: 1.10:1 Max.
• Input Connectors: 7/8″ EIA Flange or Unflanged (others available)
• AC Power Required: 115/230V, 50/60 Hz

Ensure the success of your transmitter and component endeavors with the Altronic 6705 Series – a reliable, efficient, and cost-effective solution for your RF applications.
