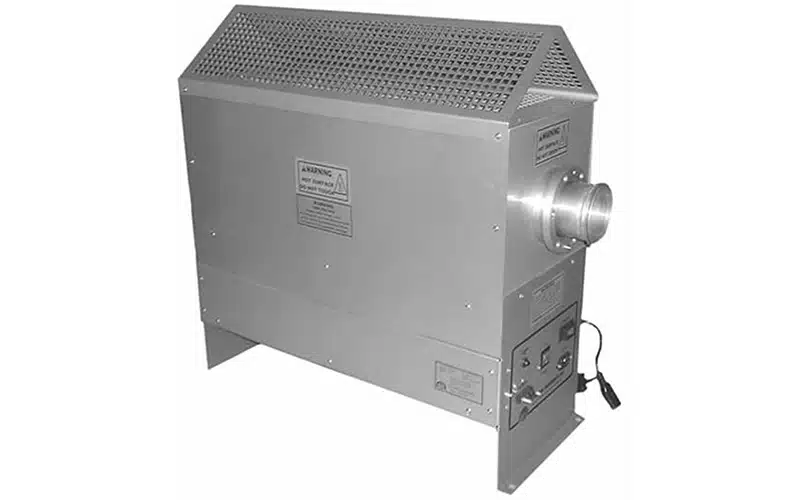

Altronic 6415E3 – 15kW

The Altronic 6415E3 – 15kW is part of the 6400 Series Omega-line Air Cooled Coaxial Loads designed by Altronic Research. This specific model is a 15kW air dielectric coaxial load, suitable for a wide range of applications. Its design allows for installation on top of transmitters or within transmitter cabinets, offering stable RF characteristics while operating using either static or forced air. The compact, oil-free design is advantageous in crowded transmitter areas, and it’s proudly made in the USA.

Here are the key specifications of the Altronic 6415E3:

• Power Rating: 15 kW continuous duty
• Impedance: 50 ohms nominal
• Frequency Range: DC to 240 MHz
• Maximum VSWR: 1.10:1 (DC to 110MHz) / 1.15:1 (120 to 240MHz)
• Input Connectors: 3-1/8″ EIA Flange
• AC Power Required: 115 VAC, 50/60 Hz, or 230 VAC 50/60 Hz
• Nominal Dimensions: 28.5″ x 26.9″ x 11.3″
• Nominal Weight: 37 lbs

It’s important to note that this product also includes a 1-year warranty, providing assurance and support for any potential issues during the initial period of use. If you choose to place an order via phone call rather than online, there’s an instant 3% discount available on your purchase.
