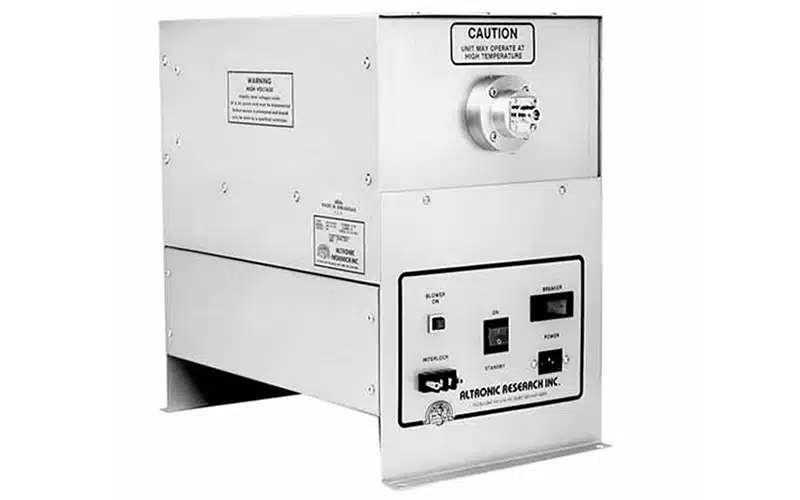

Altronic 6403 Series – Cutting-Edge Forced Air Cooled Load
Experience the latest innovation in air dielectric coaxial loads through Altronic Research’s advanced offering. This compact, oil-free design is a highly beneficial asset in busy transmitter environments. It’s versatile, serving various applications from being mounted atop a transmitter to placement inside a cabinet, and proudly manufactured in the USA!
Key Specifications:
- Power Rating: 3kW continuous duty, ensuring high power performance.
- Impedance: 50 ohms nominal for consistent signal output.
- Frequency Range: From DC to 240 MHz, providing a wide operational spectrum.
- Maximum VSWR: Remarkable 1.15:1, ensuring minimal signal loss and optimized performance.
- Input Connectors: Includes N – Female, 7/8″, 1 5/8″ EIA (others available) for enhanced connectivity options.
- AC Power Required: Options for 115 VAC, 60 Hz, or 230 VAC 50/60 Hz, offering flexible power compatibility.
- Nominal Dimensions: 10 1/2″ x 16″ x 17 1/4″ (Excluding Conn.), providing a compact and adaptable design.
- Nominal Weight: Approximately 15 lbs. (6.8 kg), ensuring ease of handling and installation.
- Finish: Beige Splatter, combining practicality with a professional appearance.
The Altronic 6403 Series Forced Air Cooled Load is a significant advancement in coaxial load technology. With its robust specifications and versatile design, it promises reliability and efficiency, catering to diverse applications in transmission environments.
