Altronic 6401 Series

6401 Series Air Cooled Coaxial Loads

These air dielectric coaxial loads deliver the same high performance of the 6700 Series in a smaller package.

SKU: 105019 Categories , , Brand: Altronic Research

$ 1,892.48 $ 1,991.47

Download PDF Brochure
6401N - 1kW - N-Female
$ 1,892.48 $ 1,991.47
6401E7/8 - 1kW - 7/8 EIA Flange
$ 2,206.92 $ 2,282.62
6401E1 - 1kW - 1-5/8 EIA Flange
$ 2,067.17 $ 2,171.98

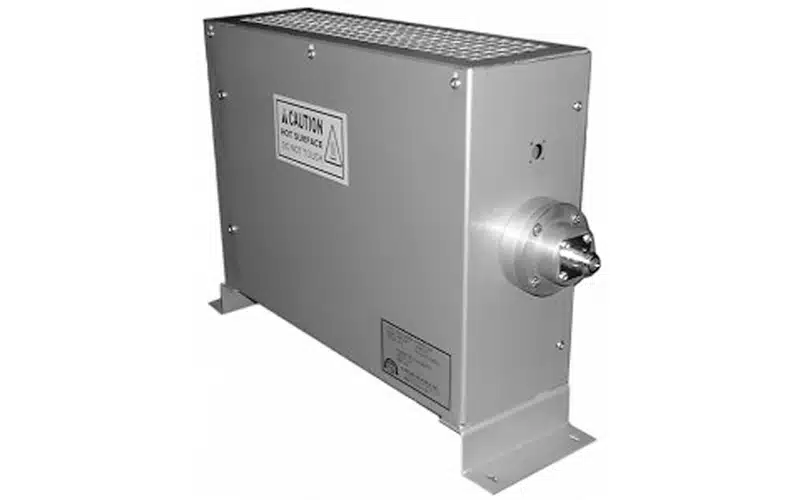

6401F1 - 1kW - 1-5/8 Unflanged/Flush
$ 2,032.23 $ 2,137.04
6401R1 - 1kW - 1-5/8 Unflanged/Recessed
$ 2,032.23 $ 2,137.04

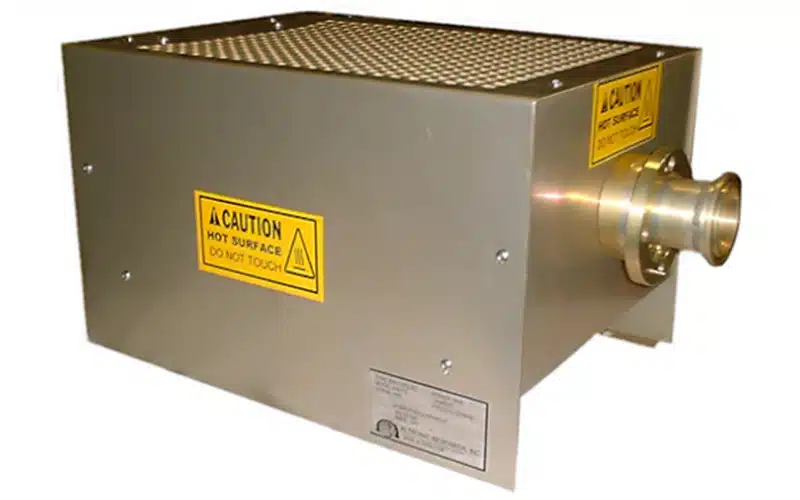

Altronic 6401 Series Omega-line Air Cooled Coaxial Loads

Discover the new generation of air dielectric coaxial loads from Altronic Research. This compact and oil-free design offers a welcomed advantage in a busy transmitter area. Applications vary from mounting atop the transmitter to cabinet placement. Proudly manufactured in the USA!

Specifications:

  • Power Rating: 1kW continuous duty
  • Impedance: 50 ohms nominal
  • Frequency Range: DC to 240 MHz
  • Maximum VSWR: 1.15:1
  • Input Connectors: N–Female, 7/16″ DIN, 7/8″, 1 5/8″ EIA (others available)
  • Nominal Dimensions (Excluding Conn.): 10.5″ x 9″ x 17.5″
  • Nominal Weight: 8 lbs.

Benefit from a 1-Year Manufacturer Warranty!
