AEV Synapse

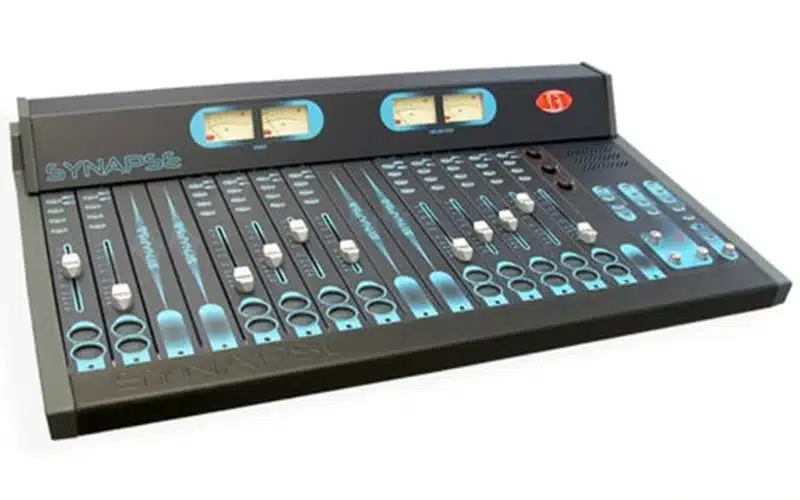

AEV Synapse Modular Console

The AEV Synapse offers cutting-edge modularity tailored to the demands of contemporary radio stations, providing a versatile platform with a mainframe featuring 16 input module slots. Versatility is key with a wide array of configurations available to suit specific needs.

Key Features:

• Balanced inputs and outputs throughout
• Modular 16-channel mixer with extensive input options
• Mic/Line, Line/Line, Digital, and Telephone Hybrid input modules available
• A/B input control for seamless switching
• Precise control with 100mm sliders featuring Digital VCA control
• Mic input with insert I/O and Phantom Supply
• Optional GPIs and GPOs for expanded functionality
• Digital input with automatic sample rate converter (32, 44.1, 48, 96 KHz)
• Three-band tone module for analog input control (optional)
• Dual hardware interface: consumer optical and professional balanced
• Telephone opto-coupled hybrid with Digital Echo-canceller plug
• Meeting function integrated into telephone hybrid
• Versatile output options with 2 independent stereo outputs (PGM, UTL)
• Analog and digital stereo output configurations available
• CUE bus for convenient monitoring
• Control Room and Studio modules with monitor mode selector
• DIM functions on headphones and Control Room
• Analog stereo VU meters for precise monitoring
• Integrated talkback microphone and built-in CUE speaker
• Auxiliary stereo inputs for external sources
• Integrated “Control Studio Fader” controls for seamless operation
• Output opto-coupled ON AIR command for clear indication
• Fully shielded bus with high-quality connectors for audio and logic I/O

Pricing (List Prices in Euro, Configurable as per Requirements):

• Mainframe with up to 16 input modules, including master module and power supply: €2,200.00
• Micro/Line input module (ALPS slider on digital VCA): €380.00
• Micro/Line input module + equalizer: €450.00
• Double Line input module (ALPS VCA digital slider): €320.00
• Double Line input module + equalizer: €390.00
• Dual Digital input module (ALPS slider on digital VCA): €400.00
• Dual Digital input + equalizer: €460.00
• Telephone Hybrid (with added plug echo canceller): €380.00
• Telephone Hybrid + equalizer: €450.00
• Plug Digital echo canceller: €65.00
• Equalizer Control module: €300.00
• Dual Digital output module: €300.00
• Dual Digital output + Equalizer control: €480.00
• Cover for one slot input: €30.00
• Option for external START/STOP command (Ext.Start/Stop): €29.00
• Remote Fader with 5m Cable: €350.00

Specifications:

(Please note that specifications are subject to change and customization. Contact us for detailed assistance and special offers.)

[Include detailed specifications with technical parameters and configurations for mic input, insert section, DJ controls, line inputs, digital controls, digital input, telephone hybrid module, external input, analog outputs, digital outputs, headphones, logic input, and logic output.]

Contact Us for Customized Solutions
