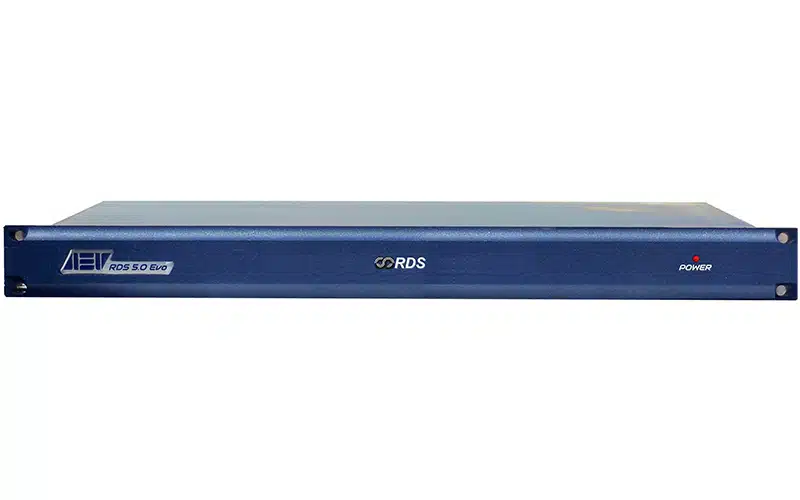

AEV RDS Evo 5.0 LCD
The new AEV RDS Evo 5.0 LCD encoder is powered with the latest generation DSP, responding to all the needs of FM broadcast stations. stations.
$ 1,592.58 Original price was: $ 1,592.58.$ 1,510.91Current price is: $ 1,510.91.
SKU:
118840
Brand:
AEV
The AEV RDS Evo 5.0 LCD is an advanced encoder designed to meet the evolving needs of signal management for FM stations. Here are some key features and specifications:
- DSP-Powered Encoder: Utilizes the latest generation Digital Signal Processor (DSP) for efficient signal processing.
- RDS Signal Decoder: Fully equipped with an RDS signal decoder, allowing decoding of external RDS signals, modification of data locally, and regeneration of RDS data package for supply to the FM transmitter.
- PI Code Monitoring: Monitors the Program Identification (PI) code contained in external RDS signals, enabling automatic switching between external and internally generated MPX signals based on programmed criteria.
- GPO Port: Provides external access to machine inputs, facilitating interface with transmitter telemetry systems.
- Ethernet Control: Can be controlled via Ethernet through an internal web server, eliminating the need for PC software installation. The web server can be configured as a client or server, depending on network setup.
- Password Protection: Offers the option to activate a password for limiting access to setup parameters, ensuring security against unauthorized personnel.
- RDS Signal Specifications:
- Standard specifications comply with EBU Doc. Tech. 3244-E and Cenelec En 50067.
- Coding: Differential and Biphase.
- Modulation: DSB-suppressed carrier.
- Frequency: 57 kHz with a central frequency of 57 kHz ± 6 Hz.
- Bandwidth: ± 2.4 KHz at -60 dB.
- RDS Injection into MPX Signal: Infinite to -16 dB.
- RDS Output Level: 0 to 500 mVpp.
- RDS Pilot Carrier Phase Setting: 0° to 90° with respect to MPX pilot reference.
- Input Impedance: >600 Ω.
- Output Impedance: <100 Ω.
- Connector: BNC grounded to chassis.
- Data Synchronization: Supports data synchronization with terminal interface via LAN, with full-duplex data input through RJ45 connector.
- RDS Data Management: Microprocessor-controlled with 128 Kbyte non-volatile memory (RAM data retention up to 20 years).
- Configuration and Monitoring: Configurable and monitorable through embedded web server, dedicated software, SNMP, and TCP/IP communication port.
- Remote Logic I/O: Supports remote logic I/O including MS, TA, and RDS OFF at CMOS level through a 15-pin subminiature cannon female connector.
- General Data:
- Power Requirement: 87 to 265 VAC, 50 to 60 Hz.
- Consumption: 8 VA.
- Dimensions: 48.3 x 24 x 4.4 cm (1 rack unit).
- Weight: 2.5 Kg (5.5 lbs).
- Operating Temperature: 0 to 50°C.
