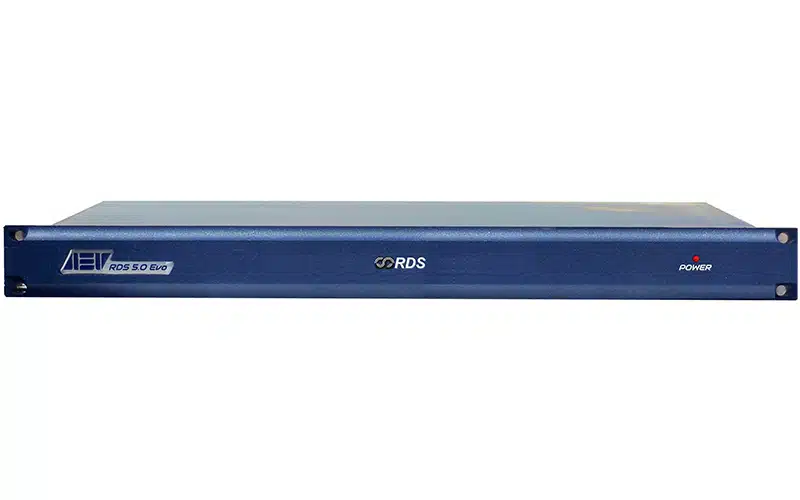

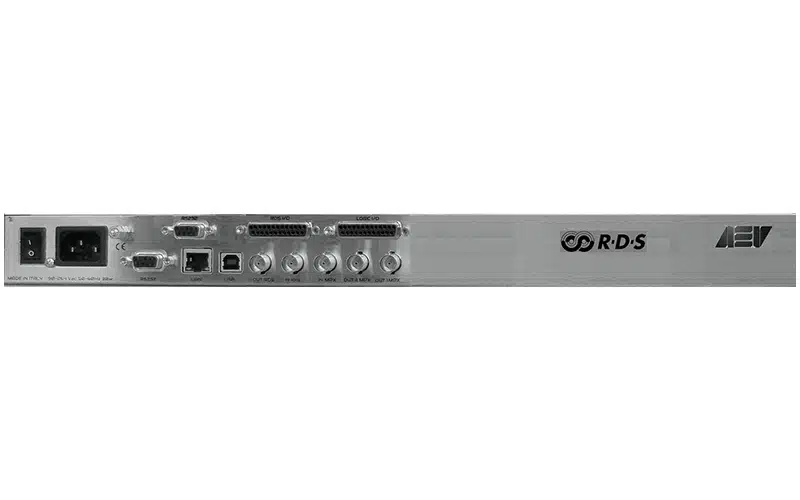

AEV RDS Evo 4.0 – Advanced RDS Encoder with Latest Generation DSP
Overview:
The AEV RDS Evo 4.0 RDS Encoder is equipped with the latest generation DSP, catering to the evolving operational requirements of signal management for FM stations.
Key Features:
- Inputs Section:
- Accepts MPX and RDS signals from external sources.
- RDS Signal Decoder:
- Decodes external RDS signals, allowing for selective data retention or modification before regenerating the RDS data package for transmission to the local FM transmitter.
- Monitors the PI code within the external RDS signal, enabling automatic switching between external and internally generated MPX signals.
- GPO Port:
- Transmits the machine’s input status for easy telemetry interface with transmitters.
- Remote Control:
- Manageable via Ethernet through the internal web server, eliminating the need for PC software installation.
- Web server configurable as CLIENT for LAN network insertion or as SERVER for direct PC connection via Ethernet cable.
- Password protection available to restrict unauthorized access to setup parameters.
Specifications:
- RDS Generator:
- RDS Signal: Standard specifications per EBU Doc. Tech. 3244-E and Cenelec En 50067.
- Coding: Differential and Biphase.
- Modulation: DSB-suppressed carrier.
- Frequency: 57 kHz.
- Central Frequency (RDS Carrier Frequency): 57 kHz ± 6 Hz.
- Bandwidth: ± 2.4 KHz (at -60 dB).
- RDS Injection into MPX Signal: – infinite ÷ – 16 dB.
- RDS Output Level: 0 – 500 mVpp range.
- RDS Pilot (57 kHz) Carrier Phase Setting: 0° – 90° relative to MPX pilot reference.
- Input Impedance: >600 Ω.
- Output Impedance: <100 Ω.
- Connector: BNC grounded to chassis.
- Data Synchronization:
- Terminal Interface: LAN.
- Data Input: Full duplex.
- Connector: RJ45.
- RDS Data Management: Microprocessor controlled 128 Kbyte.
- Non-volatile Memory: RAM data retention up to 20 years.
- Configuration and Monitoring:
- Configuration Software: Embedded web server & dedicated software.
- SNMP for configuration/monitoring.
- Connection with Automation Software: TCP/IP.
- Communication Port: Ethernet port.
- Remote Logic I/O: MS, TA, RDS OFF CMOS level.
- Connector: 15-pin subminiature cannon female.
- General Data:
- Power Requirement: 87 ÷ 265 VAC 50 ÷ 60 Hz.
- Consumption: 8 VA.
- Dimensions (WxHxD): 48.3 x 24 x 4.4 cm (1 rack unit).
- Weight: 2.5 Kg (5.5 lbs).
- Operating Temperature: 0 ÷ 50°C.
Conclusion:
The AEV RDS Evo 4.0 offers advanced RDS encoding capabilities with its latest DSP technology, providing FM stations with efficient signal management and control, along with versatile connectivity options and robust security features.
