AEQ Venus 4+
Dual full duplex stereo IP Audio codec with local analogue, digital and AoIP Dante connectivity
Original price was: €2,150.00.€2,045.00Current price is: €2,045.00.
Description
AEQ VENUS 4+
Dual full duplex stereo IP Audio codec with local analogue, digital and AoIP Dante connectivity
AEQ presents its new Phoenix Venus 4+ audio codec. This new dual stationary audio codec for point-to-point links stands out for having IP connectivity and two simultaneous bidirectional stereo transmissions with different formats and qualities. It also features SIP protocol and EBU N/ACIP standard, as well as OPUS algorithms (configuration support and remote control tools).
Carrier grade for your communications

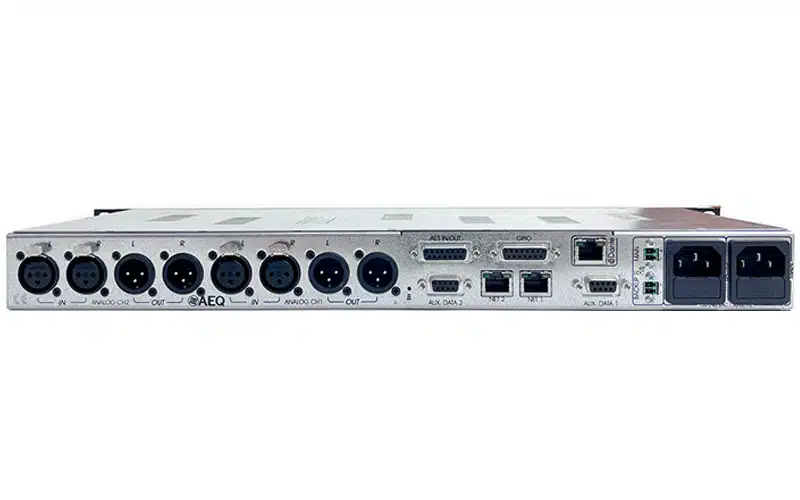

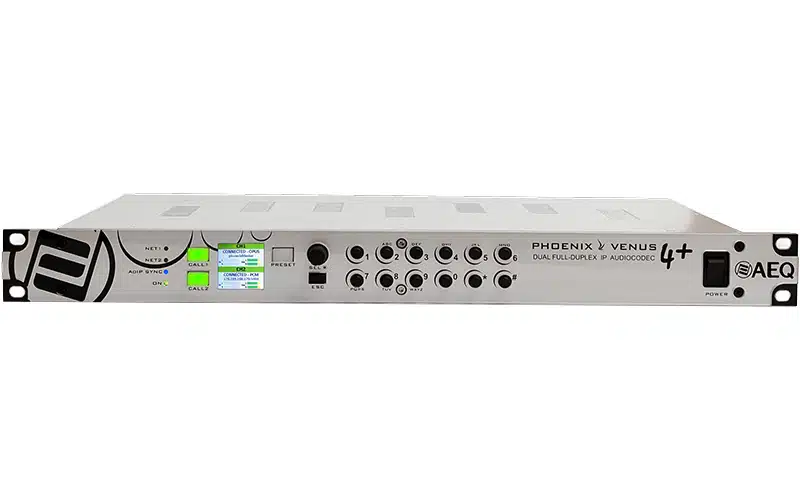

AEQ Venus 4 is available in two hardware versions: one with a front panel control and a more basic version with network and communications status indicators. Both versions have balanced analogue inputs and outputs on XLR connectors and dedicated AES/EBU digital I/O connectors. Triple network port, dual RS232 auxiliary data link and redundant power supply. Available version with 48 volt DC power supplies and optional DANTE / AES 67 IP local audio inputs and outputs.

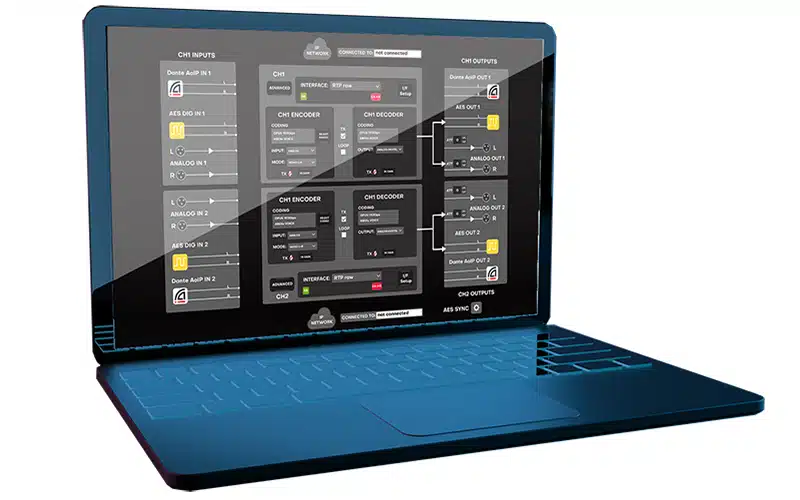

It can be controlled via the Phoenix Control application.
There is a user-friendly graphical window for configuration and another for operation that allows us to work with it as if we were in front of a front control panel, choosing encoding modes, connection modes and establishing or terminating calls.
Both the configuration and basic operation functions are presented in an accessible and intuitive way through AEQ ControlPhoenix application.
Related Products
Barix Exstreamer 110
In stock
| Weight | 0.5 kg |
|---|---|
| Dimensions | 20 × 15 × 10 cm |
| Product can be split into multiple boxes |
0 |
| Ship Separately |
0 |
| specification |
Multiroom IP Audio System Receiver Internet Radio Receiver Instore Audio Player SIP and IP Paging Zone Device Digital Annunciator ,Message Player ,Message Repeater Generic VoIP decoder for IP Paging and Announcement applications Commercial Audio Streaming Applications |
| features |
AACplus ,MP3 ,Ogg Vorbis ,G.711 ,PCM linear Decoding UDP ,RTP ,Multicast plug included) |

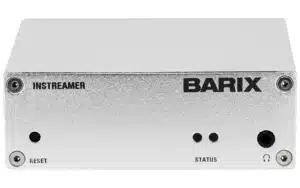

Barix Instreamer ICE
In stock
| Weight | 0.5 kg |
|---|---|
| Dimensions | 11 × 5 × 8 cm |
| specification |
Electrical• 5V ,max. 1A through Micro-B USB connector• External power adaptor ,100-240VAC ,5W ,included 10/100Mbps auto ,Link & Activity LEDs• Protocols: TCP/IP ,UDP ,RTP ,DHCP ,SNMP ,SIP• AutoIP ,SonicIP ,IPZator to ease address assignment 7/8 bit• DSub 9 pin male• serial tunnel ,control and metadata input support unbalanced ,2 kOhm impedance• Clipping level 5.3 dBu ,4 Vpp• Frequency response (-3dB) 20..20'000 Hz *• Signal to Noise Ratio 89dB ,THD <0.03%• Stereo crosstalk -89dB• Input signal attenuable by software setting (-3..+19.5dB) depending on used codec Audio formats• MP3 ,encoding/decoding up to 192/320kbps• VBR and CBR support• PCM 16bit @8 ,16 ,22.05 ,24 ,32 ,44.1 ,48 kHz• G.711 ,uLaw ,aLaw (sample rates same as PCM) 225g ,separate mounting bracket • available 4.25" x 1.5" x 3.1" (108mm x 38mm x 78.7 mm) best results @48kHz PCM |
| features |
G.711 ,G.722 ,PCM linear Encoding UDP ,RTP ,Multicast |
| Product can be split into multiple boxes |
0 |
| Ship Separately |
0 |
DEVA Broadcast DB9000-RX
In stock
| Weight | 2.6 kg |
|---|---|
| Dimensions | 54 × 30 × 11.5 cm |
| Product can be split into multiple boxes |
0 |
| Ship Separately |
0 |
| specification |
Audio decoder Decoder MPEG-1 Layer 3 or raw PCM Sample rates 44.1 and 48 kHz Bit rates including VBR Stream client Type Servers Audio backup Trigger Threshold -90dBFs to 0dBFs Trigger time 1s to 240s Storage up to 2GB Supported encoders MPEG-1 Layer 3 Supported file types *.AAC ,*.M4A ,*.M3U Playback modes Shuffle ,Playlist and Shuffled playlist Remote file management Analog audio output Connector Balanced Frequency response 5Hz-20kHz Distortion Level user selectable Sample rate Dynamic range Digital audio output Connector Type Sample rate Resampling Stereo encoder (option) Type Pre-emphasis 50 ,75µs AGC 2 user defined Equalizer ±12dB range Stereo separation Phase Adjust L-R ,RDS Injection Levels Adjust RDS Output Connector Unbalanced Output Level Adjust up to 0dBu Composite MPX Limiter 3 user defined RDS encoder (option) Supported RDS Applications PS ,Dynamic PS AF ,RT ,TP ,TA ,DI ,M/S ,PIN ,PTY ,PTYN Configuration Automation control Output Connector Unbalanced Output Level Adjust up to -6dBu Phones audio output Connector Stereo Type User interface Indicators 2 LEDs on rear panel Web interface RS-232 Type Connector Baud rates Password protection Network Connector Type Device discovery Operating conditions Temperature Humidity non-condensing Power requirements Voltage 18VA Connector rear panel Size and weight Dimension (W x H x D) 19” x 1.7” x 6.9” Weight |
| features |
High Quality HE-AAC (v.1 and v.2) and MPEG-1 Layer 3 Codecs 44.1 and 48 kHz sample rates support AGC and equalizer |

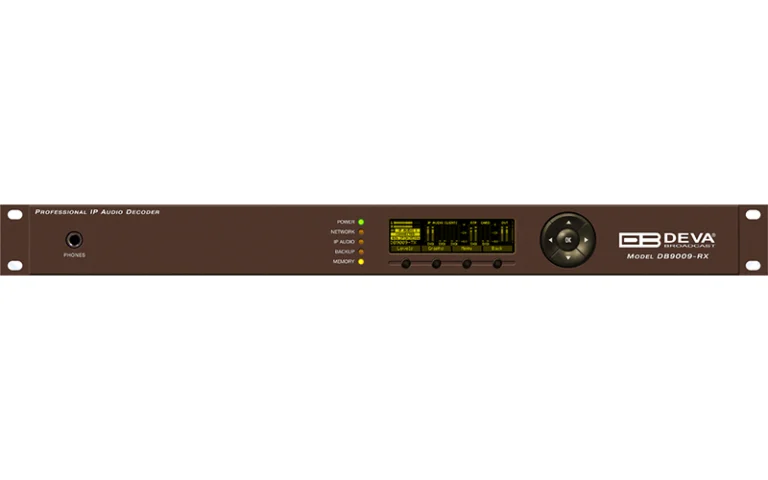

DEVA Broadcast DB9009-RX
In stock
| Weight | 2.6 kg |
|---|---|
| Dimensions | 30 × 54 × 11.5 cm |
| Product can be split into multiple boxes |
0 |
| Ship Separately |
0 |
| specification |
Audio decoder Decoder MPEG-1 Layer 3 or raw PCM Sample rates 44.1 and 48 kHz Bit rates including VBR Stream client Type Servers Source Client Server Type Clients RTP Audio Type Clients Audio backup Trigger Threshold -90dBFs to 0dBFs Trigger time 1s to 240s Storage up to 2GB Supported encoders MPEG-1 Layer 3 Supported file types *.AAC ,*.M4A ,*.M3U Playback modes Shuffle ,Playlist and Shuffled playlist Remote file management Analog audio output Connector Balanced Frequency response 5Hz-20kHz Distortion Level user selectable Sample rate Resampling Dynamic range Digital audio output Connector Type Sample rate Resampling Stereo encoder (option) Type Pre-emphasis 50 ,75µs AGC 2 user defined Equalizer ±12dB range Stereo separation Phase Adjust L-R ,RDS Injection Levels Adjust RDS Output Connector Unbalanced Output Level Adjust up to 0dBu Composite MPX Limiter RDS encoder (option) Supported RDS Applications PS ,Dynamic PS AF ,RT ,TP ,TA ,DI ,M/S ,PIN ,PTY ,PTYN Configuration Automation control Output Connector Unbalanced Output Level Adjust up to 0dBu Phones audio output Connector Stereo Type User interface Display 256 x 64 pixels Indicators 2 LEDs on rear panel GPO Web interface SNMP Version Functionality 2 LEDs on rear panel Alarms Type E-mail notification Conditions source switching GPO Type Connector RS-232 Type Connector Baud rates Password protection Network Connector Type Device discovery Operating conditions Temperature Humidity non-condensing Power requirements Voltage 50-60 Hz ,25VA Connector rear panel Size and weight Dimension (W x H x D) 19” x 1.7” x 6.9” Weight |
| features |
Excellent Audio Performances 44.1 and 48 kHz sample rates support L-R ,RDS phases 50µs ,75µs AGC and equalizer |
