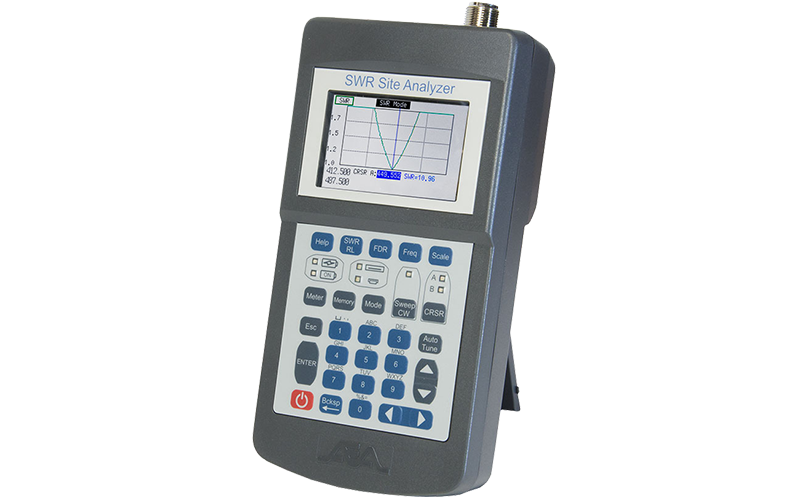

AEA 6050‑5000 100 kHz–1.5 GHz SWR Site Analyzer

Product overview

The AEA 6050-5000 100 kHz–1.5 GHz SWR Site Analyzer is a handheld Liberator RF instrument for accurate antenna and transmission line testing in broadcast, two-way radio and RF service environments. It combines SWR, return loss and Frequency Domain Reflectometer measurements in a rugged portable unit, ideal alongside our RF test and measurement solutions.

Key features

• Frequency coverage from 100 kHz to 1.5 GHz for HF, VHF and UHF systems.
• Single N-type RF port with 50 Ω impedance for direct connection to feedlines and antennas.
• Integrated FDR mode for distance-to-fault cable analysis and precise fault location.
• SWR and return loss measurement with user-selectable limit lines for at-a-glance pass/fail tuning.
• One-button autotune to quickly locate the antenna’s best SWR or return loss point.
• High-resolution color display with multi-trace plots for clear visualisation of system performance.
• USB 2.0 PC interface with companion software for data capture, reporting and firmware updates.

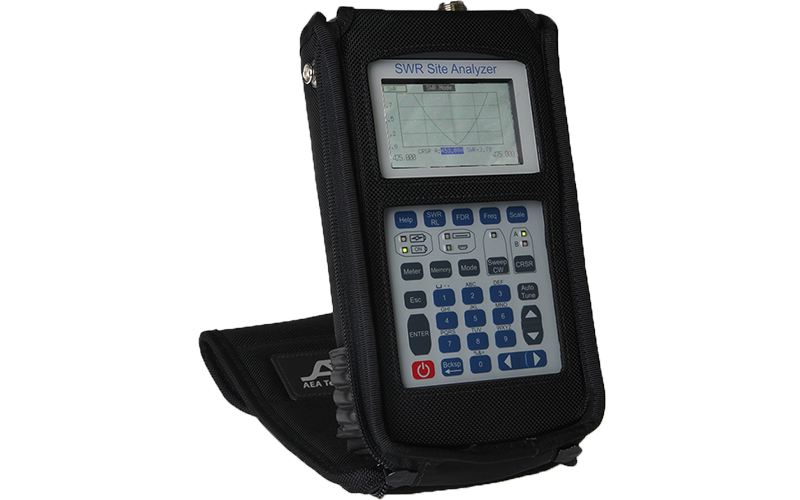

• Supplied with N terminators, rechargeable NiMH battery pack, AC adapter and soft belt case.

Connectivity and I/O

This AEA 6050-5000 analyzer provides a single N-type RF test port optimised for 50 Ω systems, supporting direct connection to coaxial jumpers, transmission lines and antennas via appropriate adapters. USB 2.0 connectivity enables connection to a PC for control, data export and firmware maintenance, while external DC input supports bench or vehicle power in addition to the internal AA cells.

In operation

In the field, the AEA 6050-5000 simplifies antenna and feedline commissioning, periodic inspections and fault-finding by combining SWR, return loss and FDR in a single compact unit. Technicians can quickly verify installation quality, locate impedance discontinuities and document results, making it a practical companion to other AEA RF analyzers available on our AEA Technology brand page.
