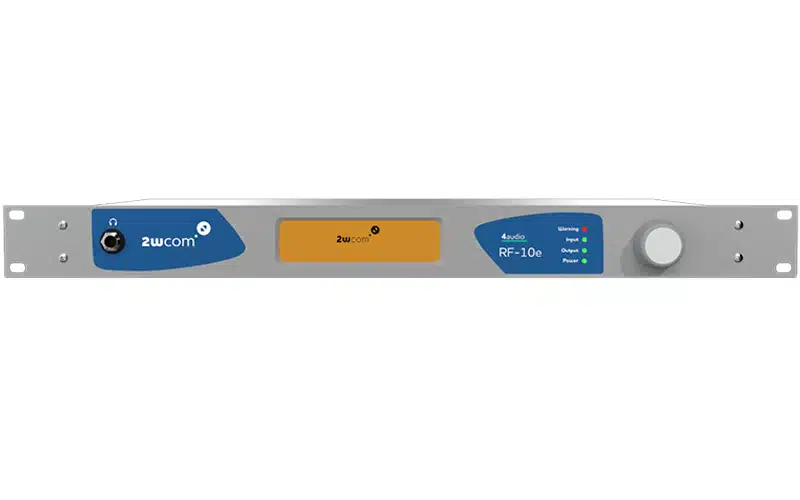

2WCOM RF-10e 10-channel FM DAB+ broadcast receiver

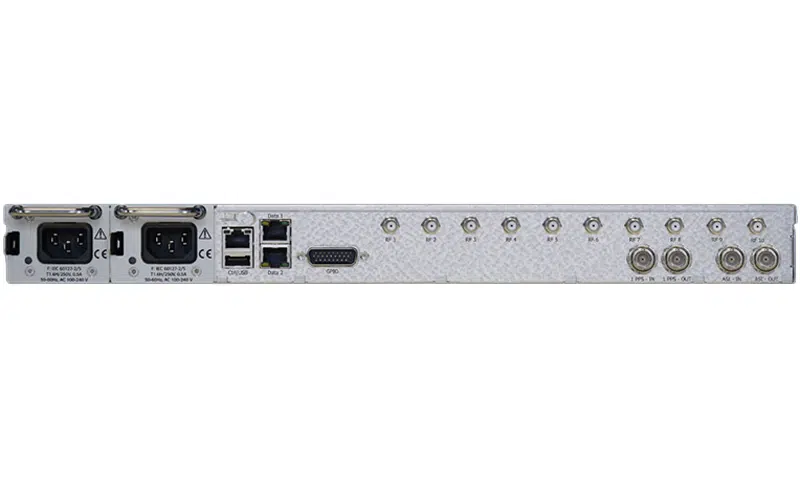

2WCOM RF-10e FM DAB receiver rear panel with RF inputs, ASI and IP connections
Sale!
2WCOM RF-10e 10-channel FM DAB+ broadcast receiver
2WCOM RF-10e FM DAB receiver rear panel with RF inputs, ASI and IP connections

2WCOM RF-10e – 10-Channel FM/DAB+ Broadcast Receiver

2WCOM RF-10e is a configurable FM/DAB+ broadcast receiver supporting up to ten reception channels, audio-over-IP encoding and optional MPEG-2 Transport Stream and DVB-ASI distribution.

2WCOM RF-10e – 10-Channel FM/DAB+ Broadcast Receiver combines off-air reception with audio re-encoding and network distribution. The configurable 1U platform supports up to ten FM, HD Radio or DAB+ reception channels using a maximum of five dual-tuner modules. Specify tuner hardware, channel activation and output options when ordering.

Flexible Broadcast Reception

Optional dual-tuner modules provide two reception channels each, with up to ten female F-type RF connections in a fully populated unit. The current datasheet specifies 75-ohm RF inputs, FM coverage of 87.5–108 MHz and DAB Band III coverage of 168–240 MHz. Japanese FM coverage is also listed.

Audio Encoding and Redistribution

2WCOM RF-10e encodes received audio for distribution to cable headends, streaming systems and internal audio networks. Supported codec families include MPEG audio, AAC, Opus, Ogg Vorbis, PCM and Enhanced aptX, depending on the selected licences. MPEG-2 Transport Stream encoding and DVB-ASI facilities require the appropriate configuration.

IP Streaming and Remote Management

Three Ethernet interfaces can be configured for audio data or control. Available streaming facilities include RTP/UDP, SRT, HLS and Icecast, with additional interoperability and resilience options available. A browser-based interface supports setup, while SNMP and other remote-control protocols support integration with broadcast management systems.

Configure Capacity and Redundancy

Select single, dual or hot-plug power arrangements to match the installation. The maximum ten-channel reception capacity does not guarantee every simultaneous encoding and streaming combination: some formats place additional demands on processing resources. Confirm the required channel count, codecs, outputs and redundancy features as one validated configuration.

Basic Specifications

  • Factory model: RF-10e.
  • Maximum capacity: ten reception channels.
  • Tuners: up to five optional dual-tuner modules.
  • RF formats: FM, HD Radio and DAB/DAB+.
  • RF connections: female F-type, 75 ohms.
  • Ethernet: three RJ45 interfaces.
  • ASI: optional 75-ohm BNC interfaces.
  • Management: web interface and SNMP.
  • Format: 19-inch, 1U.
  • Chassis depth: 310 mm.
  • Published weight: less than 5 kg.
  • Operating temperature: 0 to +45 °C.
