Advanced Acoustics – F.A.T. 10″ Acoustic Studio Foam Tile Kit
Precision Cut Convoluted Acoustic Tiles
- Size: 254mm x 254mm x 40mm thick
- Quantity: 162 tiles per kit
- Coverage: 10.44 sqm (112.5 sqft)
- NRC: 0.55
- Availability: Always in stock, shipped uncompressed
- Ideal For: Broadcast Studios & Vocal Booths
What’s In The Box?

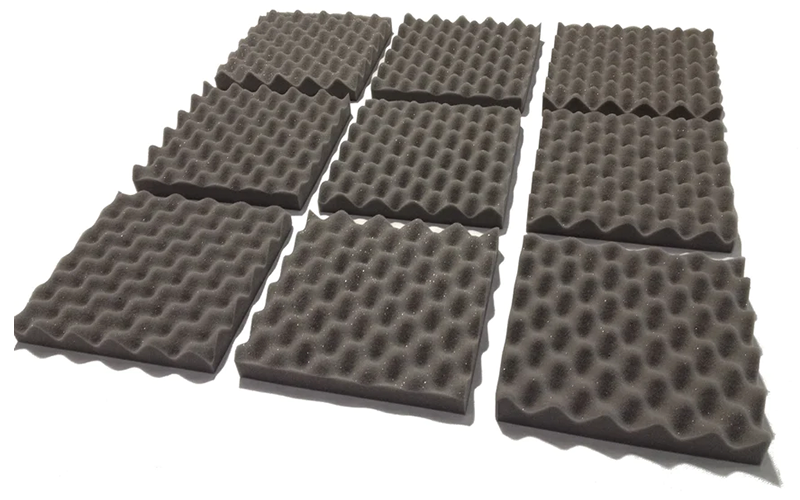

The F.A.T. 10″ Acoustic Tile Kit is a staple in studio environments. Featuring a distinctive convoluted or “eggbox” profile, these tiles are both functional and aesthetically pleasing. Each kit includes 162 acoustic tiles, each measuring 254mm (10″) by 254mm (10″) and 40mm thick at the peak. One kit covers a total area of 10.44 sqm (112.5 sqft).
Due to the unique pattern of these tiles, it is recommended to leave a 20-40mm gap between each tile for the best visual effect. Paired with a contrasting wall color, you can create a striking and unique studio design. With an NRC of 0.55, these tiles are perfect for vocal booths, podcast studios, and similar applications. All tiles are shipped uncompressed and ready to install, straight from our UK production facility. Available in Mid Grey only.
Benefits
The eggbox profile is a cost-effective solution synonymous with studio environments. These tiles offer excellent acoustic performance and are best installed with a 10mm gap between each tile.
By strategically placing clusters of these tiles in a random orientation at first reflection points or other critical areas, you can significantly improve acoustic clarity and reduce unwanted distortion. These tiles are particularly effective at controlling mid to high frequencies, helping to eliminate echoes and manage reverberation. They can also be mixed with our other 10″ Studio Foam Tiles for a customized design.
Our tiles are engineered for durability, with optimized size, profile, foam cell structure, and density. They are designed to maintain their form and color without crumbling or turning to dust, ensuring long-lasting performance.
Applications
Our acoustic products are versatile and can be used in a wide range of settings, including:
- High-End Professional Studios
- Home Studios
- Rehearsal Rooms
- Home Cinemas
- Dedicated Listening Rooms
- Public Buildings
- Professional and Home Offices
- Server Rooms
- And more
Technical Details
- Product Name: F.A.T. 10″ Acoustic Tile Kit
- Product Size: 10″ x 10″ x 1 5/8″ (254mm x 254mm x 40mm)
- Tiles Per Pack: 162
- Area Covered Per Pack: 112.5 sqft (10.44 sqm)
- Sound Absorption Class: D
- Noise Reduction Coefficient: 0.55
- Absorption at 250Hz: 0.21
- Absorption at 500Hz: 0.46
- Absorption at 1000Hz: 0.66
- Absorption at 2000Hz: 0.80
- Absorption at 4000Hz: 1.08
- Product Colour: Mid Grey
- Fire Classification: Crib 5 and Schedule 1, Part 1 of the Furnishings and Furniture (Fire)(Safety) Regulations 1988 (amended 1989)
- Acoustic Foam Density: 30kg/m³
Conclusion
The F.A.T. 10″ Acoustic Studio Foam Tiles are designed to help you and your room perform at their best. With their high-quality design and excellent acoustic properties, they are an essential addition to any studio or sound-sensitive environment.
