ITALAB MD1000

In stock

Weight 1 kg
Dimensions 20 × 15 × 10 cm

ITALAB COLIBRI 30 ST

In stock

Original price was: $ 1,455.33.Current price is: $ 1,119.49.
Weight 7 kg
Dimensions 56 × 56 × 13 cm

ITALAB COLIBRI ST 50

In stock

Original price was: $ 1,603.84.Current price is: $ 1,233.72.
Weight 7 kg
Dimensions 56 × 56 × 13 cm

ITALAB COLIBRI ST 100

In stock

Original price was: $ 1,713.50.Current price is: $ 1,627.83.
Weight 7 kg
Dimensions 56 × 56 × 13 cm

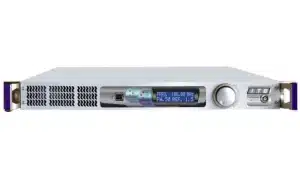

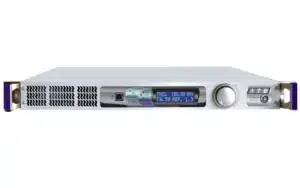

ITALAB COLIBRI ST 300

In stock

Original price was: $ 2,197.85.Current price is: $ 1,919.12.
Weight 10 kg
Dimensions 59 × 59 × 13 cm

ITALAB ARCHIMEDE 1000

In stock

Original price was: $ 2,747.32.Current price is: $ 2,113.32.
Weight 16 kg
Product can be split into multiple boxes

0

Ship Separately

0

specification

GENERAL CHARACTERISTICS

OPTIONS

Frequency Range
87.5 ÷ 108 MHz
144 MHz

Input Power
10 W ± 1.5 dB
200 mW

Output Power
≥ 1100 W
1500 W

RF Harmonics
Exceeds EBU/CCIR/FCC requirements.

RF Dispositive
2 X MRF6V2600H ( 600 W )

Monitor RF
– 60 dBc ± 6 dB
OPT

Input – Output Impedance
50 Ω
60 – 75 Ω

Input RF connector
Type “ N “

Output RF connector
Type 7/16”
Type N

RF monitor Connector
SMA
OPT

AC MAINS
197 ÷ 240 VAC Mono Phase

AC Power Consumption
1550 W @ 230 VAC ÷ 5%

Max current 230 Vac Transmitter
1 A
5 A

Working Temperature
0 ÷ 45°C MAX

Weight
16 Kg. ± 2%

Dimension
Rack 2 Unit 19”

,

51

,

5 cm.

Internal ventilation
7 Fans ( 2 x Power Supply )

ITALAB COLIBRI ST 500

In stock

Original price was: $ 2,791.87.Current price is: $ 2,147.59.

ITALAB ATLAS 1000

In stock

Original price was: $ 2,376.06.Current price is: $ 2,261.82.
Weight 10.00 kg
Dimensions 30 × 40 × 11 cm

ITALAB ARCHIMEDE 2000

In stock

Original price was: $ 4,128.40.Current price is: $ 3,175.69.
Weight 17 kg
Product can be split into multiple boxes

0

Ship Separately

0

specification

GENERAL CHARACTERISTICS

OPTIONS

Frequency Range
87.5 ÷ 108 MHz

Input Power
10 W ± 1.5 dB
20 – 25 W

Output Power
= 2000 W

RF Harmonics
Exceeds EBU/CCIR/FCC requirements.

RF Dispositive
2 X MRF6VP61K25H ( 1250 W )

Monitor RF
– 60 dBc ± 6 Db
opt

Input – Output Impedance
50 O

Input RF connector
Type “ N “

Output RF connector
Type 7/16”

RF monitor Connector
SMA
opt

AC MAINS
190 ÷ 270 VAC Mono Phase

AC Power Consumption
= 3000 W @ 230 VAC ÷ 5%

Max current 230 Vac Transmitter
1 A
5 A

Working Temperature
0 ÷ 45°C MAX

Weight
17 Kg. ± 2%

Dimension
Rack 2 Unit 19”

,

51

,

5 cm.

Internal ventilation
9 Fans ( 4 x Power Supply )

ITALAB ARCHIMEDE 3000

In stock

Original price was: $ 6,848.30.Current price is: $ 5,705.96.
Weight 20 kg
Dimensions 40 × 50 × 20 cm
Product can be split into multiple boxes

0

Ship Separately

0

specification

GENERAL CHARACTERISTICS

OPTIONS

Frequency Range
87.5 ÷ 108 MHz

Input Power
15 W ± 1 dB

Output Power
= 3000 W

RF Harmonics
CCIR/FCC req.

RF Dispositive
4 x MRF6VP11KH

Monitor RF
-75dBc ± 6dB

Input – Output Impedance
50 O

Input RF connector
Type “ N “

Output RF connector
Type 7/16”
EIA 7/8”

RF monitor Connector

Type SMA

AC Power supply
190 ÷ 240 Vac Mono Phase
3 Phase 380 VAC + Neutral

AC Power Consumption
= 5000 W @ 230 VAC ÷ 5%

Max current 230 Vac Transmitter
1

,

5 A

Working Temperature
0÷45° C MAX – 3500 mt s.l.m.

Weight
23 Kg. ± 2%

Dimension
Rack 3 Unity – 51.5 cm.

Internal ventilation
5 Fans

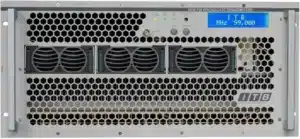

ITALAB 5kW

In stock

Original price was: $ 19,419.69.Current price is: $ 11,994.52.
Weight 32 kg
Dimensions 56 × 56 × 13 cm
Color

Black

specification

GENERAL FEATURES

Frequency Range
87.5 – 108 MHz

Input Power
25 W ± 1 dB

Output Power
5500 W ±1dB

RF Harmonics
CCIR/FCC req.

RF Dispositive
6 x MRFE6VP61K25H

Monitor RF
– 75dBc ± 6dB

Input – Output Impedance
50 Ω

Input RF Connector
Type " N "

Output RF Connector
Type 7/8"

RF monitor Connector
Type SMA

AC Power Supply
200 – 260 vac – triph.380Vac

AC Power Consumption
≤ 8000 W @ 230 VAC ÷ 5%

Working Temperature
0 ÷ 45° C MAX

,

3500 mt s.l.m.

Weight
32 Kg. ± 2%

Dimension
Rack 4 Units – 70 cm.

Internal Ventilation
8 Fans
