For 40 years, Aphex has been at the heart of professional audio, recording, broadcast, live and installed sound.

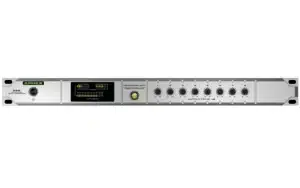

Aphex 228

In stock

495.00
Weight 2.27 kg
features

<ul>
<li>Use for interfacing consumer surround equipment to pro amps and speakers</li>
<li>Servo balanced input and output circuits</li>
<li>Independent output level trim adjustments</li>
<li>Front panel LED VU meters with illumination dim control</li>
</ul>

specification

<table class="product-tab-table">
<tbody>
<tr>
<th colspan="2" class="product-tab-table-category">Audio</th>
</tr>
<tr>
<td width="40%" class="product-tab-table-header">Rated at nominal gain</td>
<td class="product-tab-table-cell">11.78dB</td>
</tr>
<tr>
<td class="product-tab-table-header">Inputs</td>
<td class="product-tab-table-cell">8 unbalanced RCA</td>
</tr>
<tr>
<td class="product-tab-table-header">Outputs</td>
<td class="product-tab-table-cell">8 Balanced XLR 3-pin Male</td>
</tr>
<tr>
<td class="product-tab-table-header">Gain Translation</td>
<td class="product-tab-table-cell">11.78 dB Adjustable ±6 dB</td>
</tr>
<tr>
<td class="product-tab-table-header">Frequency Response</td>
<td class="product-tab-table-cell">-3dB @ .16 Hz and 80 kHz</td>
</tr>
<tr>
<td class="product-tab-table-header">THD @ max output</td>
<td class="product-tab-table-cell">Less than .001% at M.O.L.</td>
</tr>
<tr>
<td class="product-tab-table-header">IMD @ max output</td>
<td class="product-tab-table-cell">Less than .001% at M.O.L.</td>
</tr>
<tr>
<td class="product-tab-table-header">Output Noise</td>
<td class="product-tab-table-cell">Better than -90dBu

,

input shorted</td>
</tr>
<tr>
<td class="product-tab-table-header"SNR></td>
<td class="product-tab-table-cell">94 dB</td>
</tr>
<tr>
<td class="product-tab-table-header">Dynamic Range</td>
<td class="product-tab-table-cell">114 dB</td>
</tr>
<tr>
<td class="product-tab-table-header">Max Output Level (MOL)</td>
<td class="product-tab-table-cell">+24dBu</td>
</tr>
<tr>
<td class="product-tab-table-header">Max Input Level</td>
<td class="product-tab-table-cell">3.55V RMS</td>
</tr>
<tr>
<th colspan="2" class="product-tab-table-category">OTHER SPECIFICATIONS</th>
</tr>
<tr>
<td class="product-tab-table-header">Power Requirements</td>
<td class="product-tab-table-cell">100 / 120 / 220 / 240 VAC 50-60 Hz 20 Watts max</td>
</tr>
<tr>
<td class="product-tab-table-header">Dimensions</td>
<td class="product-tab-table-cell">19″W x 1.75″H x 9″ D (482.6mm x 44.5mm x 228.6mm)</td>
</tr>
<tr>
<td class="product-tab-table-header">Power Supply</td>
<td class="product-tab-table-cell">Internal

,

Fused</td>
</tr>
<tr>
<td class="product-tab-table-header">Net Weight</td>
<td class="product-tab-table-cell">5 lbs (2.27 kg)</td>
</tr>
</tbody>
</table>

Ship Separately

0

Product can be split into multiple boxes

0

Aphex 188

In stock

1,500.00
Weight 4 kg
Ship Separately

0

Product can be split into multiple boxes

0

specification

Balanced analog outputs

2 ADAT outputs

Internal clock: 44.1

,

48

,

88.2

,

96kHz

External clock input from 44.1 to 96kHz

Word clock output

Automatic ADAT SMUX output for 88.2 and 96kHz

Selectable SMUX for 44.1 and 48kHz

65dB total gain

,

26dB fixed gain

,

39dB variable gain

26dB PadPolarity reverse

Low cut filter @ 80Hz

Max output level +21dBu

EIN: -125dBu

features

Eight High Quality Remote Mic Preamps in One Rack Space
Remote controllable via Ethernet

,

MIDI

,

1788A-RC
Works with our 5200 interface for control from Avid and Yamaha digital mixers
Analog and ADAT outputs
