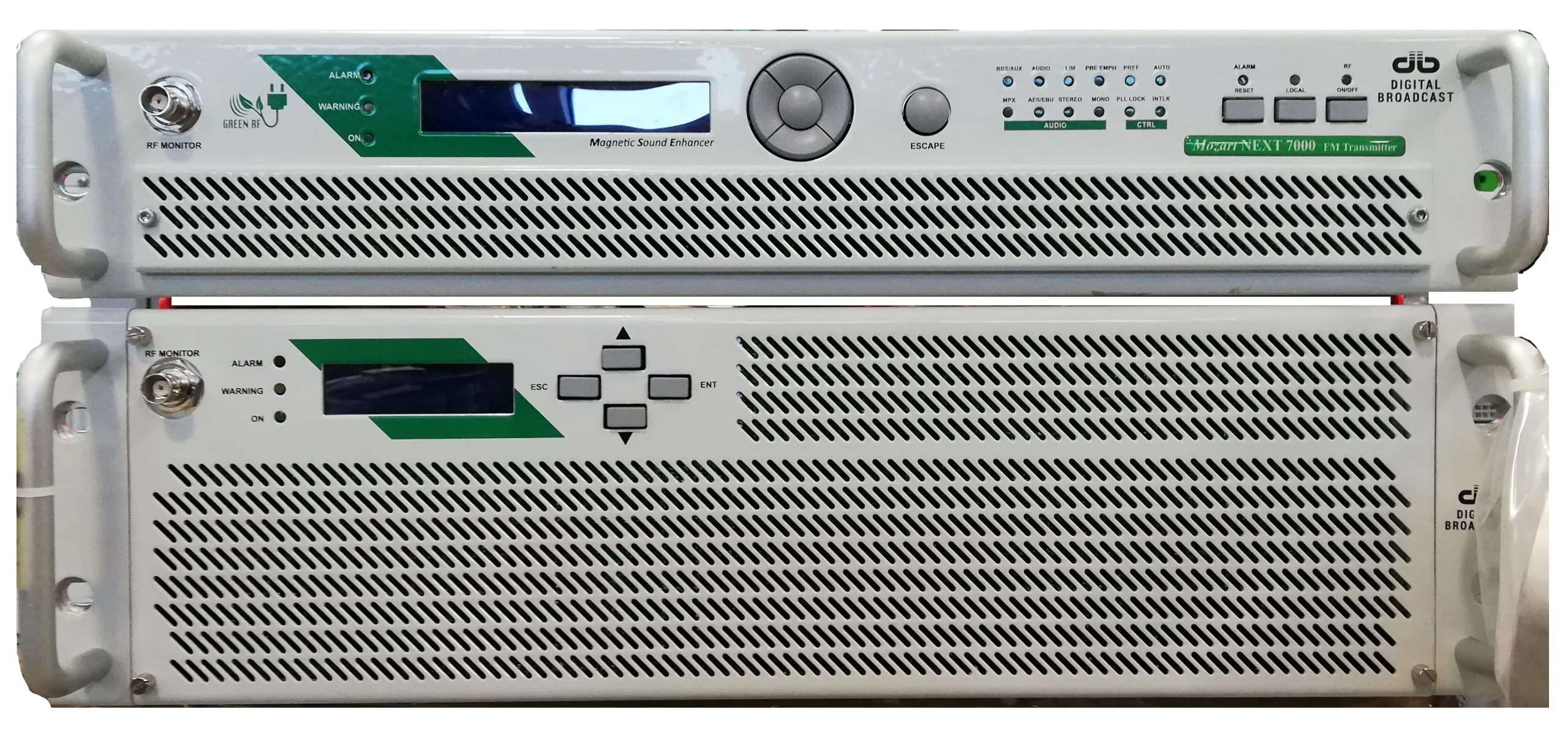

DB Mozart NEXT 6000

FCC Certified 6kW FM Transmitter

The new DB Mozart NEXT 6000 FM Transmitter – Exciter Series is the latest audio excellence in the FM Broadcasting industry.

SKU: 106562

Call for Price

Description

DB Mozart NEXT 6000

FM transmitter – Radio transmitter : the new Mozart FM Transmitter – Exciter Series is the latest audio excellence in the FM Broadcasting industry with revolutionary Audio & RF technology.

MAIN CHARACTERISTICS:

– The GREEN RF™ technology, combined with new 65:1 devices, is the latest evolution of the world-famous patented COLD-FET™ technology applied on DB’s transmitters.

– FM transmitter Low maintenance costs thanks to the easy access to all components, external cooling air filters, very high MTBF for RF and power supply modules.
– Compact design and low weight to reduce transportation costs and simplify logistics.
– FM transmitter High frequency stability in short and long terms assured by Digital Phase Locked Loop circuit with low drift VCTCXO.
– FM transmitter Complete WEB SERVER SNMP, GSM or SMS remote control, available as option.
– FM transmitter Complete remote management via Wi-Fi with Wi-Fi Touch, available as option.
– FM transmitter External reference oscillator, available as option: 10 MHz.
– Frequency Agile Broadband, settable directly from the LCD front panel with 10 kHz steps without need for tuning tools.
– Meets or exceeds all international standards for safety and electrical specifications.

Related Products

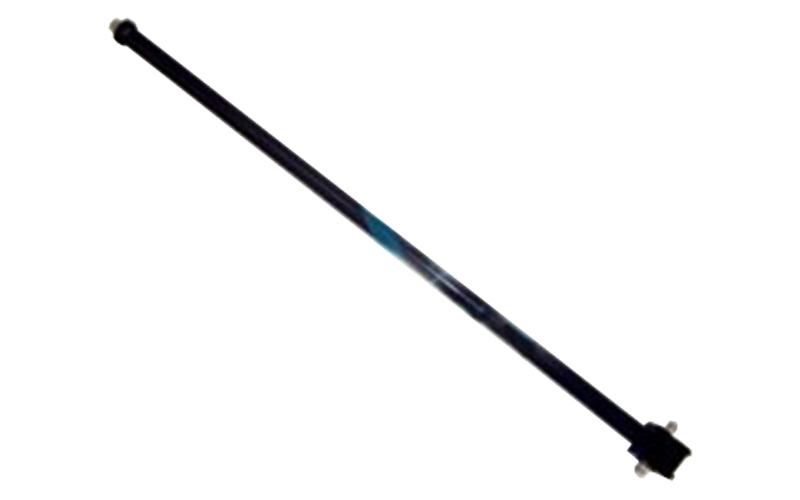

Label Italy AKS/1N
